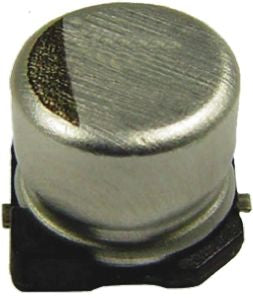

Panasonic 22μF 63V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 x 7.7mm +105°C 6.3mm 1.8mm [EEHZA1J220XP]; 758-1284
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 63 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 6.3 x 7.7mm |
| Height | 7.7mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 1.8mm |
| Lifetime | 10000h |
| Series | ZA |
| Equivalent Series Resistance | 80mΩ |
| Tolerance | ±20% |
| Ripple Current | 1500mArms |
| Leakage Current | 0.01 CV or 3 μA (After 2 min) |
| Polarised | Polar |
