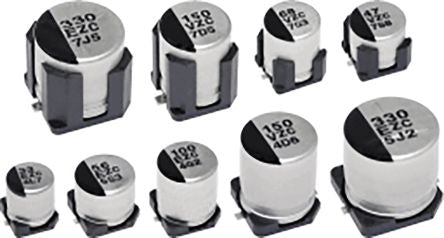

Panasonic 47μF 80V dc Hybrid Conductive Polymer Aluminium Capacitor, Surface Mount 10 Dia. x 10.2mm +125°C 10mm [EEHZC1K470P]; 179-3424
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 80 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 10 Dia. x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 1000h |
| Series | ZC |
| Leakage Current | 3 μA |
| Polarised | Polar |
| Automotive Standard | AEC-Q200 |
| Ripple Current | 1.36A |
| Equivalent Series Resistance | 36mΩ |
| Tolerance | ±20% |
| Dissipation Factor | 0.0008 |
