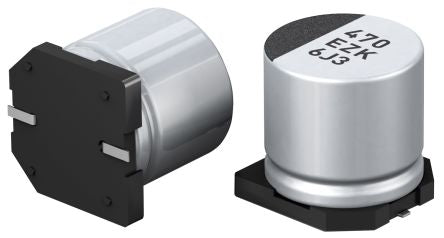

Panasonic 270μF 25V dc Hybrid Conductive Polymer Aluminium Capacitor, Surface Mount 8 (Dia.) x 10.2mm +125°C 8mm 3.1mm [EEHZK1E271P]; 131-1957
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 270 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 8 (Dia.) x 10.2mm |
| Depth | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 3.1mm |
| Lifetime | 4000h |
| Series | ZK |
| Dissipation Factor | 0.0014 |
| Equivalent Series Resistance | 27mΩ |
| Ripple Current | 1920mA |
| Tolerance | ±20% |
| Leakage Current | ≤0.01 CV or 3 μA |
| Polarised | Polar |
