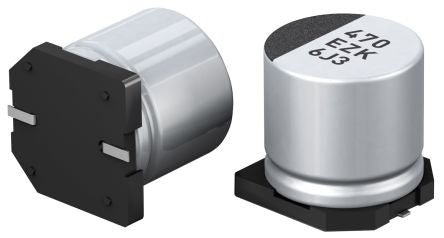

Panasonic 470μF 25V dc Hybrid Conductive Polymer Aluminium Capacitor, Surface Mount 10 (Dia.) x 10.2mm +125°C 10mm [EEHZK1E471P]; 172-4193
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 10 (Dia.) x 10.2mm |
| Depth | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 4000h |
| Lead Pitch | 4.6mm |
| Series | ZK |
| Equivalent Series Resistance | 20mΩ |
| Ripple Current | 2800mA |
| Tolerance | ±20% |
| Leakage Current | 0.01 CV or 3 μA |
| Polarised | Polar |
| Dissipation Factor | 0.0014 |
