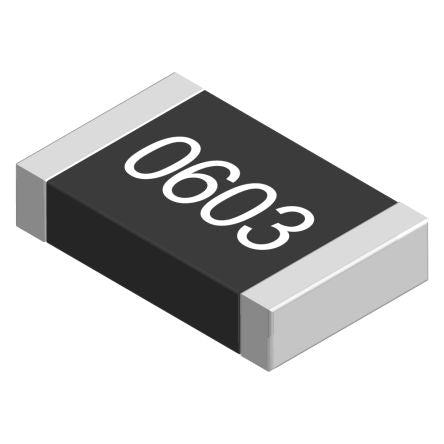

PANASONIC Resistor: thin film; 2kΩ; SMD; 0603; 100mW; ±0.1%; ERA3AEB; 25ppm/°C [ERA3AEB202V]
Panasonic ERA Series Size 0603 0.1W 0.1% 25ppm Metal Film Chip Resistors, 1kΩ → 4.99kΩ ERA 3A metal film resistors from Panasonic offer stability in high humidity and high temperature environments, while remaining highly accurate. This series of 0603 of chip resistors provides a high performance solution and features excellent non-linearity. AEC-Q200 qualified Small temperature coefficient of resistance Small resistance tolerance Excellent linearity and low current noise Power rating options between 0.05 W and 0.25 W Applications Industrial Automotive Power Management Consumer Electronics Portable Devices These metal film resistors are AEC-Q200 qualified and are suitable for automotive applications. Standards IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B High reliability Stable at high temperature and humidity (85 °C 85 %RH rated load, Category temperature range : –55 °C to +155 °C) High accuracy Small resistance tolerance and Temperature Coefficient of Resistance High performance Low current noise, excellent linearity
Panasonic ERA Series Size 0603 0.1W 0.1% 25ppm Metal Film Chip Resistors, 1kΩ → 4.99kΩ
ERA 3A metal film resistors from Panasonic offer stability in high humidity and high temperature environments, while remaining highly accurate. This series of 0603 of chip resistors provides a high performance solution and features excellent non-linearity.
AEC-Q200 qualified
Small temperature coefficient of resistance
Small resistance tolerance
Excellent linearity and low current noise
Power rating options between 0.05 W and 0.25 W
Applications
- Industrial
- Automotive
- Power Management
- Consumer Electronics
- Portable Devices
These metal film resistors are AEC-Q200 qualified and are suitable for automotive applications.
Standards
IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
High reliability Stable at high temperature and humidity (85 °C 85 %RH rated load, Category temperature range : –55 °C to +155 °C)
High accuracy Small resistance tolerance and Temperature Coefficient of Resistance
High performance Low current noise, excellent linearity
