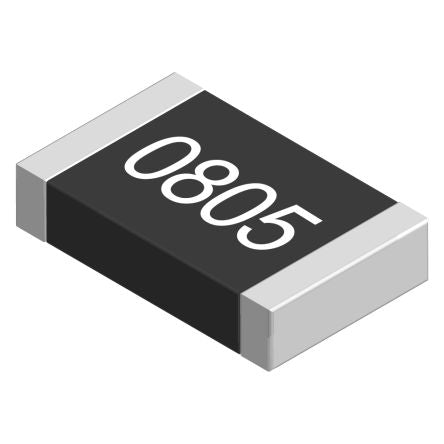

PANASONIC Resistor: thick film; 33mΩ; SMD; 0805; 500mW; ±1%; ERJ6BWF [ERJ6BWFR033V]
0805 Format ERJ 6BW Series - 1% Panasonic ERJ 6BW thick film chip resistors are lightweight and compact. Constructed from three layers of electrodes and a metal glaze thick film resistive element, ERJ 3BW resistors have a double-sided resistive element structure. This offers improved high power/resistance to pulse. These chip resistors feature low-resistance values of 10 mΩ to 100 mΩ. Features & Benefits: AEC-Q200 qualified Current sensing Small size Low-resistance value Suitable for both flow and reflow soldering Applications These current sense resistors are AEC-Q200 qualified and can be used in automotive applications. Standards IEC 60115-8, JIS C 5201-8, JEITA RC-2144
0805 Format ERJ 6BW Series - 1%
Panasonic ERJ 6BW thick film chip resistors are lightweight and compact. Constructed from three layers of electrodes and a metal glaze thick film resistive element, ERJ 3BW resistors have a double-sided resistive element structure. This offers improved high power/resistance to pulse. These chip resistors feature low-resistance values of 10 mΩ to 100 mΩ.
Features & Benefits:
AEC-Q200 qualified
Current sensing
Small size
Low-resistance value
Suitable for both flow and reflow soldering
Applications
These current sense resistors are AEC-Q200 qualified and can be used in automotive applications.
Standards
IEC 60115-8, JIS C 5201-8, JEITA RC-2144
