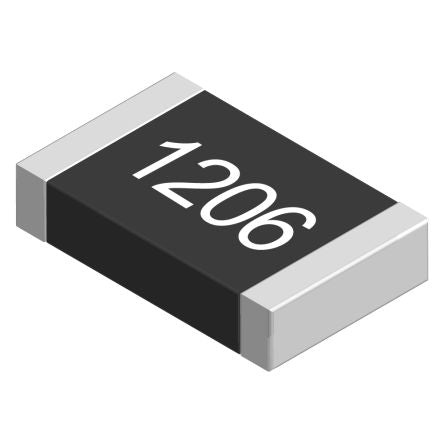

PANASONIC Resistor: thick film; 33mΩ; SMD; 1206; 1W; ±1%; ERJ8BWF; -55÷155°C [ERJ8BWFR033V]
1206 Format ERJ8BW Series - 1% Panasonic ERJ 8BW thick film chip resistors are compact and lightweight. Constructed from three layers of electrodes and a metal glaze thick film resistive element, ERJ 8BW resistors have a double-sided resistive element structure. This offers improved high power/resistance to pulse. These chip resistors features low-resistance values of 10 mΩ to 100 mΩ. AEC-Q200 qualified Low TCR Current sensing Small size Low resistance value Suitable for both flow and reflow soldering Applications These chip resistors are AEC-Q200 qualified and are suitable for automotive applications. Standards IEC 60115-8, JIS C 5201-8, EIAK RC-2134B
1206 Format ERJ8BW Series - 1%
Panasonic ERJ 8BW thick film chip resistors are compact and lightweight. Constructed from three layers of electrodes and a metal glaze thick film resistive element, ERJ 8BW resistors have a double-sided resistive element structure. This offers improved high power/resistance to pulse. These chip resistors features low-resistance values of 10 mΩ to 100 mΩ.
AEC-Q200 qualified
Low TCR
Current sensing
Small size
Low resistance value
Suitable for both flow and reflow soldering
Applications
These chip resistors are AEC-Q200 qualified and are suitable for automotive applications.
Standards
IEC 60115-8, JIS C 5201-8, EIAK RC-2134B
