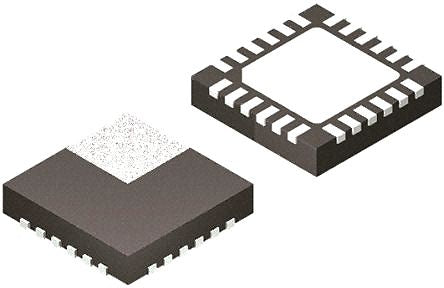

Panasonic NN30321A-VB, Step Down DC-DC Switching Regulator, Adjustable, 10mA 24-Pin, HQFN [NN30321A-VB]; 169-8045
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Output Voltage | 0.75 V |
| Maximum Output Voltage | 5.5 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 28 V |
| Minimum Output Current | 10mA |
| Maximum Output Current | 6A |
| Converter Type | Step Down |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Package Type | HQFN |
| Pin Count | 24 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Switching Regulator | Yes |
| Dimensions | 4 x 4 x 0.8mm |
| Height | 0.8mm |
| Maximum Switching Frequency | 650 kHz |
| Load Regulation | 0.035 |
| Width | 4mm |
| Length | 4mm |
| Line Regulation | 0.75 %/V, 200 mV |
