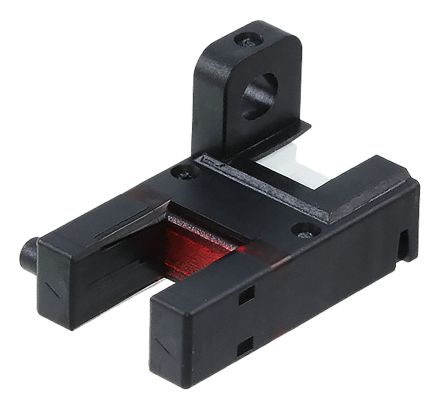

Panasonic Through Beam (Fork) Photoelectric Sensor 6 mm Detection Range PNP IP40 Fork Style PM-R65-P [PM-R65-P]; 125-4575
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Fork |
| Detection Type | Through Beam (Fork) |
| Detection Range | 6 mm |
| Output Type | PNP |
| Electrical Connection | 4-Pin Connector |
| Maximum DC Voltage | 24V |
| Terminal Type | 4-Pin Connector |
| Light Source | Infrared |
| IP Rating | IP40 |
| Maximum Current | 50 (Source Current) mA |
| Response Time | 20 (Received) μs, 80 (Interrupted) μs |
| Housing Material | PBT (Enclosure), Polycarbonate (Display Section) |
| Minimum Operating Temperature | -25°C |
| Mounting Type | Chassis Mount |
| Series | PM-65 |
| Standards Met | IEC |
| Maximum Operating Temperature | +55°C |
