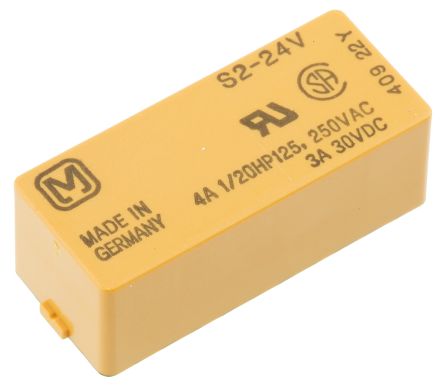

Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 8.4 mA [S224]; 127-9229
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Contact Configuration | DPDT |
| Switching Current | 8.4 mA |
| Mounting Type | PCB Mount |
| Terminal Type | Through Hole |
| Coil Resistance | 2.85 kΩ |
| Length | 28mm |
| Depth | 12mm |
| Height | 10.4mm |
| Dimensions | 28 x 12 x 10.4mm |
| Operating Temperature Range | -40 → +65°C |
| Maximum Switching Power DC | 90 W |
| Coil Power | 202mW |
| Minimum Operating Temperature | -40°C |
| Isolation Coil To Contact | 1.5kV rms |
| Maximum Operating Temperature | +65°C |
| Contact Material | Gold Plated |
| Life | 100000000 (Electrical) cycles |
| Maximum Switching Power AC | 1 kVA |
