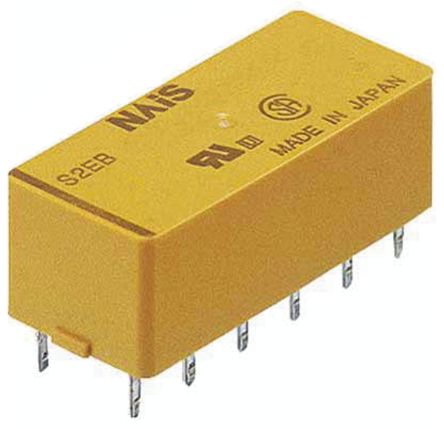

DPDT PCB Mount Latching Relay 3 A, 24V dc For Use In Telecommunications Applications [S2EB-L2-24V]; 815-4821
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.125 |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 48V |
| Maximum Switching Power DC | 90 W |
| Length | 28mm |
| Depth | 12mm |
| Height | 10mm |
| Dimensions | 28 x 12 x 10mm |
| Terminal Type | PCB Pin |
| Application | Telecommunications |
| Isolation Coil To Contact | 1.5kV rms |
| Maximum Operating Temperature | +65°C |
| Features | High Reliability and Long Life, Strong Resistance to Vibration and Shock |
| Life | 100000000 operations |
| Coil Resistance | 2.85 kΩ |
| Minimum Operating Temperature | -55°C |
| Contact Material | Gold Plated |
| Maximum Switching Power AC | 1 kVA |
| Electrical Life | 100000 operations |
| Operating Temperature Range | -55 → +65°C |
| Coil Power | 202mW |
