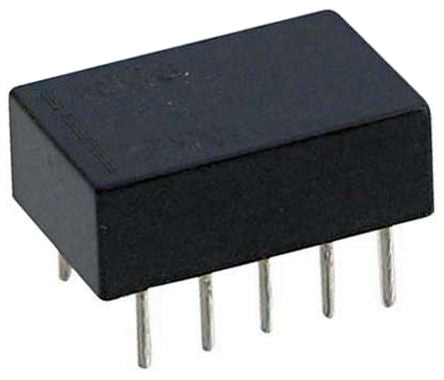

DPDT PCB Mount, High Frequency Relay 24V dc [TQ2-L2-24V]; 815-4962
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Resistance | 1.92 kΩ |
| Contact Resistance | 50 mΩ |
| Contact Configuration | DPDT |
| Coil Voltage | 24 V dc |
| Mounting Type | PCB Mount |
| Latching | Yes |
| Contact Voltage | 110 V dc, 125 V ac |
| Coil Power | 300mW |
| Contact Material | Gold Plated |
| Length | 14mm |
| Operating Temperature Range | -40 → +70°C |
| Dimensions | 14 x 9 x 5mm |
| Maximum Operating Temperature | +70°C |
| Switching Voltage | 110 V dc, 125 V ac |
| Depth | 9mm |
| Life | 200000 Operations |
| Operating Time Including Bounce | 3ms |
| Height | 5mm |
| Minimum Operating Temperature | -40°C |
