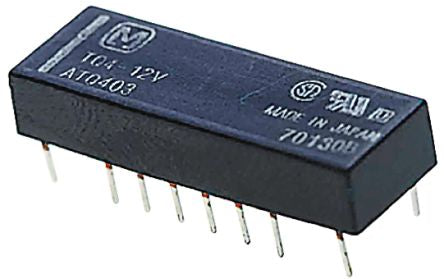

DPDT PCB Mount Latching Relay 2 A, 24V dc [TQ2L24ULCSA]; 699-6225
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.0833333333333333 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 220V dc |
| Maximum Switching Power DC | 60 W |
| Length | 14mm |
| Depth | 9mm |
| Height | 5mm |
| Dimensions | 14 x 5 x 9mm |
| Terminal Type | Through Hole |
| Coil Resistance | 3.84 kΩ |
| Maximum Switching Power AC | 62.5 VA |
| Isolation Coil To Contact | 1kV rms |
| Minimum Operating Temperature | -40°C |
| Coil Power | 150mW |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +70°C |
| Maximum Operating Temperature | +70°C |
| Life | 100000000 (Mechanical) cycles |
