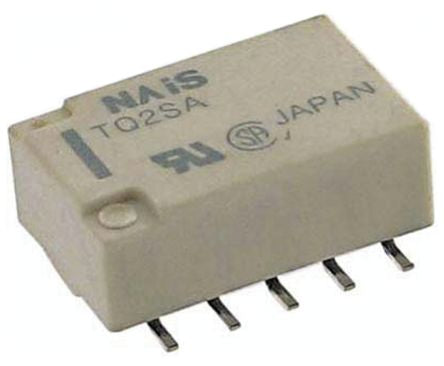

DPDT Surface Mount, High Frequency Relay 5V dc [TQ2SA-L2-5V]; 815-4877
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Resistance | 178 Ω |
| Contact Resistance | 75 mΩ |
| Contact Configuration | DPDT |
| Coil Voltage | 5 V dc |
| Mounting Type | Surface Mount |
| Latching | Yes |
| Contact Voltage | 125 V ac, 220 V dc |
| Coil Power | 140mW |
| Contact Material | Silver Alloy |
| Life | 100000 Operations |
| Minimum Operating Temperature | -40°C |
| Dimensions | 14 x 9 x 5.6mm |
| Operating Temperature Range | -40 → +85°C |
| Operating Time Including Bounce | 4ms |
| Length | 14mm |
| Depth | 9mm |
| Switching Voltage | 125 V ac, 220 V dc |
| Maximum Operating Temperature | +85°C |
| Height | 5.6mm |
