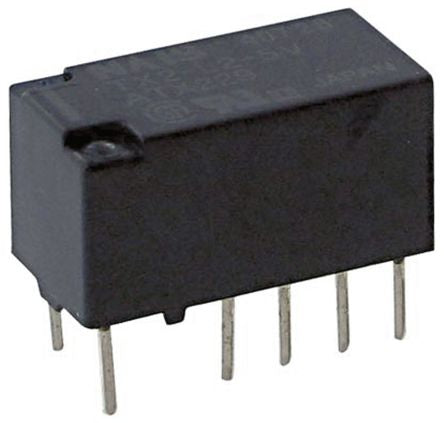

DPDT PCB Mount Latching Relay 2 A, 5V dc For Use In Telecommunications Applications [TX2-L2-5V]; 815-4883
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.0833333333333333 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 60 W |
| Length | 15mm |
| Depth | 7.4mm |
| Height | 8.2mm |
| Dimensions | 15 x 7.4 x 8.2mm |
| Terminal Type | PCB Pin |
| Application | Telecommunications |
| Life | 100000000 operations |
| Coil Power | 200mW |
| Features | High Contact Capacity, Outstanding Surge Resistance, Outstanding Vibration and Shock Resistance |
| Minimum Operating Temperature | -40°C |
| Electrical Life | 100000 operations |
| Isolation Coil To Contact | 2kV rms |
| Coil Resistance | 125 Ω |
| Operating Temperature Range | -40 → +70°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Gold Plated |
