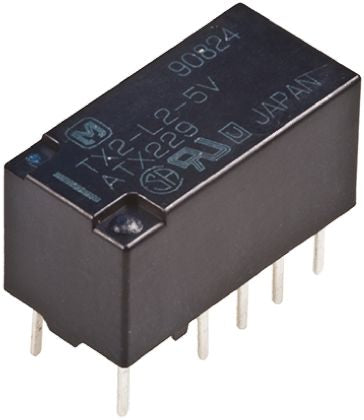

DPDT PCB Mount Latching Relay 2 A, 5V dc For Use In Automotive Applications [TX2L5C]; 699-6345
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.0833333333333333 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage DC | 220V dc |
| Maximum Switching Power DC | 60 W |
| Length | 15mm |
| Depth | 7.4mm |
| Height | 8.2mm |
| Dimensions | 15 x 8.2 x 7.4mm |
| Terminal Type | Through Hole |
| Application | Automotive |
| Isolation Coil To Contact | 2kV rms |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 250 Ω |
| Coil Power | 100mW |
| Life | 100000000 (Mechanical) cycles |
