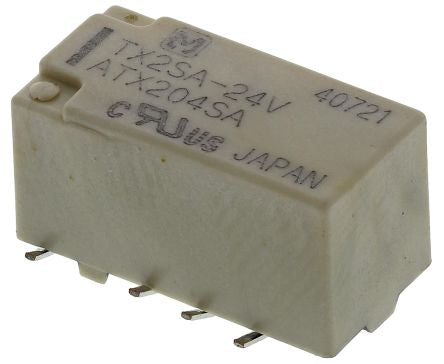

Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A [TX2SA24]; 217-2999
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.0833333333333333 |
| Terminal Type | Surface Mount |
| Coil Resistance | 4.114 kΩ |
| Maximum Switching Voltage DC | 220V dc |
| Application | Automotive |
| Length | 15mm |
| Depth | 7.4mm |
| Height | 8.2mm |
| Dimensions | 15 x 7.4 x 8.2mm |
| Maximum Switching Power DC | 60 W |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Life | 100000 (Electrical) cycles, 100000000 (Mechanical) cycles |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 2kV rms |
| Coil Power | 140mW |
| Special Features | Sealed |
