Panduit ABM1M-AT-M

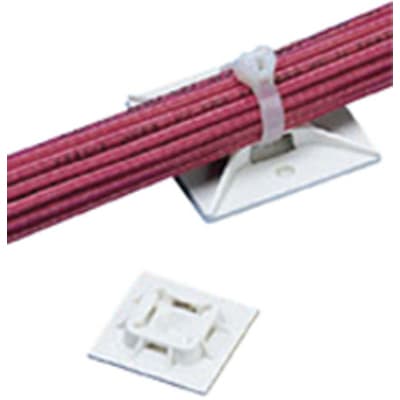

The 4-way adhesive backed cable tie mount in white is mounted with acrylic adhesive tape. It is 0.50" long x 0.50" wide (12.7 x 12.7 mm) and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with m

Mã kho: PAJ793
Tên nhà sản xuất: Panduit
8.210₫ - 8.210₫
8.210₫
8.210₫ - 8.210₫
8.210₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit ABM1M-AT-M

MÔ TẢ SẢN PHẨM

Panduit’s ABM1M-AT-M 4-way adhesive cable tie mounts are applied with acrylic adhesive tape and made of Nylon 6.6. They have been designed for fast installation and long-term performance and reliability. These mounts can be used with miniature, intermediate, and standard cable ties and are intended

_THÔNG SỐ KỸ THUẬT:

Application Used with Miniature, Intermediate, and Standard Cables Ties
Product Type Cable Tie Mount
Color White
Environment Indoor
Material Nylon 6.6
Maximum Compatible Panel Thickness (In.) 0.04
Maximum Compatible Panel Thickness (mm) 1
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Minimum Operating Temperature (°C) -29
Minimum Operating Temperature (°F) -20
Mount Method Acrylic Adhesive Tape
Overall Height (In.) 0.15
Overall Height (mm) 3.8
Overall Length (In.) 0.5
Overall Length (mm) 12.7
Overall Width (In.) 0.5
Overall Width (mm) 50.3
Standards Met CE Compliant, UL Recognized, RoHS Compliant
Static Load Capacity (kg) 0.059
Static Load Capacity (lb) 0.13
For Use With Miniature Cross-Section Ties
