Panduit ABM4H-AT-L

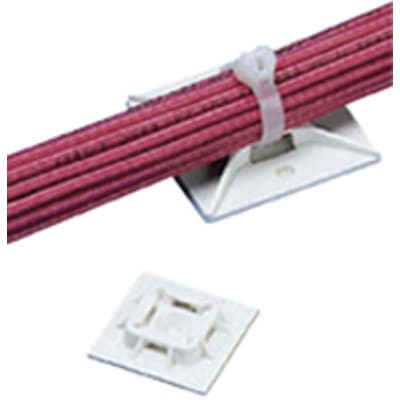

The 4-way adhesive backed cable tie mount in white is mounted with acrylic adhesive tape. It is 2.0" long x 2.0" wide (50.8 x 50.8 mm) and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with min

Mã kho: PAJ820
Tên nhà sản xuất: Panduit
34.250₫ - 34.250₫
34.250₫
34.250₫ - 34.250₫
34.250₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit ABM4H-AT-L

MÔ TẢ SẢN PHẨM

Panduit’s ABM4H-AT-L 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. The

_THÔNG SỐ KỸ THUẬT:

Application Used with Miniature, Intermediate, and Standard Cables Ties
Product Type Cable Tie Mount
Color White
Environment Indoor
Material Nylon 6.6
Maximum Compatible Panel Thickness (In.) 0.04
Maximum Compatible Panel Thickness (mm) 1
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Minimum Operating Temperature (°C) -29
Minimum Operating Temperature (°F) -20
Mount Method Acrylic Adhesive Tape
Mounting Hole Thread Size #6
Overall Height (mm) 50.8
Overall Length (In.) 2
Overall Length (mm) 50.8
Overall Width (In.) 2
Overall Width (mm) 50.3
Standards Met CE Compliant, UL Recognized: E136577, RoHS Compliant
Static Load Capacity (kg) 0.907
Static Load Capacity (lb) 2
For Use With Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties
