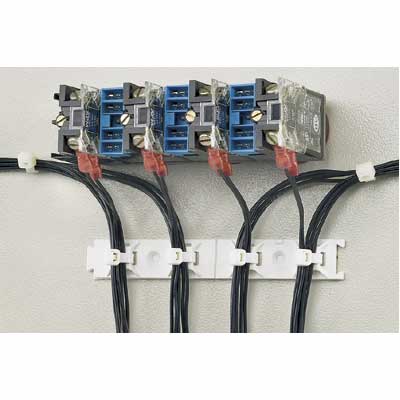

The multiple bridge adhesive backed cable tie mount in white with 4-way cable tie entry makes part orientation fast and easy. It is mounted with rubber adhesive tape and has a hole spacing of 2.5" (63.5 mm). It is 5.1" long x 0.75" wide (130.3 x 19.0 mm)

Mã kho: PAJ833
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit ABMQS-A-Q

MÔ TẢ SẢN PHẨM

The multiple bridge adhesive backed cable tie mount in white with 4-way cable tie entry makes part orientation fast and easy. It is mounted with rubber adhesive tape and has a hole spacing of 2.5" (63.5 mm). It is 5.1" long x 0.75" wide (130.3 x 19.0 mm) and made of ABS plastic. It is used with mini

_THÔNG SỐ KỸ THUẬT:

Application (1) Multiple Cable Tie Bridges on One Mount (2) V-Groove Allows for Easy Separation into Two Mounts with Two Bridges Each for Separate Applications (3) 4-Way Cable Tie Bridges
Product Type Cable Tie Mount
Color White
Flammability Rating NA
Environment Indoor
Material ABS
Maximum Compatible Panel Thickness (In.) 0.04
Maximum Compatible Panel Thickness (mm) 1
Maximum Operating Temperature (°C) 49
Maximum Operating Temperature (°F) 120
Minimum Operating Temperature (°C) -29
Minimum Operating Temperature (°F) -20
Mount Method Rubber Adhesive Tape
Mounting Hole Thread Size #6
Overall Height (In.) 0.29
Overall Height (mm) 7.4
Overall Length (In.) 0.75
Overall Length (mm) 19
Overall Width (In.) 5.13
Overall Width (mm) 130.3
Standards Met CE Compliant, UL Recognized: E136577, RoHS Compliant
Static Load Capacity (kg) 0.838
Static Load Capacity (lb) 1.85
Sub Brand NA
For Use With Miniature, Intermediate Cross-Section Ties
