Panduit ABMS-A-C

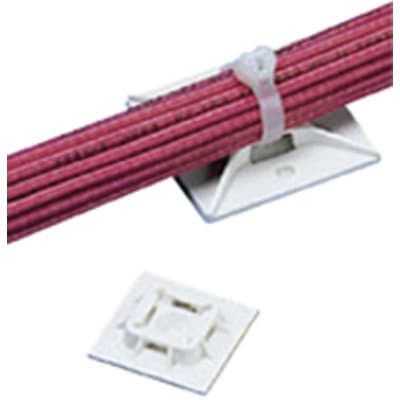

The 2-way adhesive backed cable tie mount in white is mounted with rubber adhesive tape. It is 1.1" long x 1.1" wide (27.9 x 27.9 mm) and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with mini

Mã kho: PAJ835
Tên nhà sản xuất: Panduit
18.380₫ - 18.380₫
18.380₫
18.380₫ - 18.380₫
18.380₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit ABMS-A-C

MÔ TẢ SẢN PHẨM

Panduit’s ABMS-A-C 2-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6., and can be used with miniature, intermediate, and standard cable ties. Mounts are 1.12” x 1.12” (28.5mm x 28.5mm), w

_THÔNG SỐ KỸ THUẬT:

Application 2 Way Cable Tie Mount, used With Miniature, Intermediate, and Standard Cable Ties
Product Type Cable Tie Mount
Color Natural
Environment Indoor
Material Nylon 6.6
Maximum Compatible Panel Thickness (In.) 0.04
Maximum Compatible Panel Thickness (mm) 1
Maximum Operating Temperature (°C) 49
Maximum Operating Temperature (°F) 120
Minimum Operating Temperature (°C) -29
Minimum Operating Temperature (°F) -20
Mount Method Rubber Adhesive Tape
Mounting Hole Thread Size #6
Overall Height (In.) 0.17
Overall Height (mm) 4.3
Overall Length (In.) 1.13
Overall Length (mm) 28.7
Overall Width (In.) 1.13
Overall Width (mm) 50.3
Standards Met CE Compliant, UL Recognized: E136577, RoHS Compliant
Static Load Capacity (kg) 0.272
Static Load Capacity (lb) 0.6
For Use With Miniature, Intermediate Cross-Section Ties
