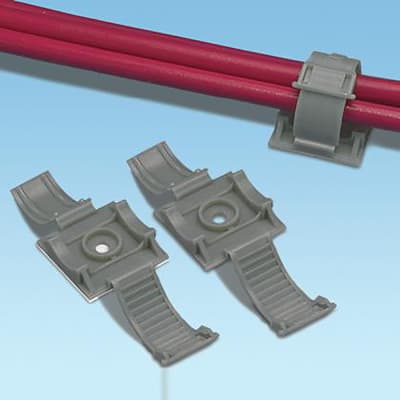

Panduit Clincher™ adjustable releasable clamp, #6 Screw (M3), .19" - .69" (4.8mm - 17.5mm) bundle, white, standard package. [ARC.68-S6-Q]; PAJ874

Mã kho: PAJ874
Mã nhà sản xuất: ARC.68-S6-Q
Tên nhà sản xuất: Panduit
Original price 17.630₫ - Original price 17.630₫
Original price
17.630₫
17.630₫ - 17.630₫
Current price 17.630₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Clamps Clips: Panduit ARC.68-S6-Q

MÔ TẢ SẢN PHẨM

Clincher™ adjustable releasable clamp, #6 Screw (M3), .19" - .69" (4.8mm - 17.5mm) bundle, white, standard package.

_THÔNG SỐ KỸ THUẬT:

Application (1) Adjustable clamp designed to contain a range of cable bundle diameters (2) Latch can be released to provide access to cable bundles
Product Type Adjustable and releasable clamp
Color White
Environment Indoor
Material Polypropylene
Maximum Bundle Diameter (In.) 0.68
Maximum Bundle Diameter (mm) 17.3
Mount Method Rubber Adhesive Tape
Mounting Hole Diameter (In.) 0.15
Mounting Hole Diameter (mm) 3.8
Overall Height (In.) 0.41
Overall Height (mm) 10.4
Overall Length (In.) 1
Overall Length (mm) 25.4
Overall Width (In.) 1
Overall Width (mm) 25.4
Resistance Properties Flame Resistance(UL94HB)
Standards Met UL Recognized: E136577, RoHS Compliant
Static Load Capacity (kg) 0.2
Static Load Capacity (lb) 0.5
Sub Brand Clincher
