The epoxy applied cable tie swivel mount in natural is affixed with user supplied EMA epoxy. It is 1.13" long x 1.13" wide (28.7 x 28.7 mm) and has an aluminum base and a nylon mount. It is used with miniature, intermediate, and standard cable ties. It i

Mã kho: PAJ876
Tên nhà sản xuất: Panduit
Original price 76.160₫ - Original price 76.160₫
Original price
76.160₫
76.160₫ - 76.160₫
Current price 76.160₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit ASMS-A-T

MÔ TẢ SẢN PHẨM

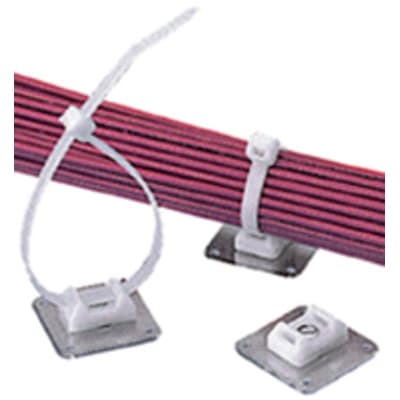

Panduit ASMS-A-T Epoxy Applied Swivel Mounts are affixed with user supplied EMA epoxy. They swivel 360◦ in order to assure proper orientation with harness and have four inspection holes to observe adhesive coverage. Mounts are 1.13” x 1.13” (28.7 x 28.7mm) in size and are for use in indoor environme

_THÔNG SỐ KỸ THUẬT:

Application Epoxy Applied Cable Tie Swivel Mount, Used with Miniature, Intermediate, and Standard Cable Ties
Product Type Cable Tie Mount
Color Natural
Environment Indoor
Material Nylon 6.6
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Two-Part Epoxy
Overall Height (mm) 8.9
Overall Length (In.) 1.13
Overall Length (mm) 28.5
Overall Width (In.) 1.13
Overall Width (mm) 28.5
Standards Met CE Compliant, UL Recognized: E136577, RoHS Compliant
Static Load Capacity (kg) 4.5
Static Load Capacity (lb) 10
For Use With Miniature, Intermediate, Standard Cross-Section Ties
