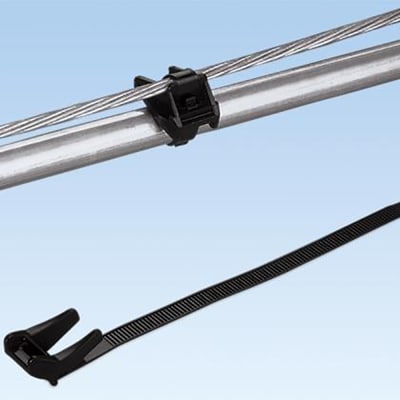

Panduit AST10-5-C100

The aerial support tie in black with integral 1/2" (12.7mm) spacer for support strand applications is made of weather-resistant polypropylene. It is 5.6" long and 0.45" wide (142 x 11.4 mm), features a releasable locking style and can support a maximum bu

Mã kho: PAJ878
Tên nhà sản xuất: Panduit
16.350₫ - 16.350₫
16.350₫
16.350₫ - 16.350₫
16.350₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit AST10-5-C100

MÔ TẢ SẢN PHẨM

The aerial support tie in black with integral 1/2" (12.7mm) spacer for support strand applications is made of weather-resistant polypropylene. It is 5.6" long and 0.45" wide (142 x 11.4 mm), features a releasable locking style and can support a maximum bundle diameter of 1.0" (25.4 mm). It is design

_THÔNG SỐ KỸ THUẬT:

Application (1) To Attach Coax or Telephone Cable to The 1/4 Inch (6.4Mm) or 5/16 Inch (7.9Mm) Support Strand to form The Expansion Loop and Keep Equipment and Cables Clear of Pole Hardware
Product Type Cable Tie Mount
Color Black
Environment Indoor/Outdoor
Material Weather Resistant Polypropylene
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Loop Tensile Strength (N) 334
Minimum Loop Tensile Strength (lb) 75
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Aerial Support
Overall Length (In.) 5.6
Overall Length (mm) 142.2
Overall Width (In.) 1.16
Overall Width (mm) 50.3
Resistance Properties Heat and UV Resistant
Standards Met RoHS Compliant
Sub Brand NA
