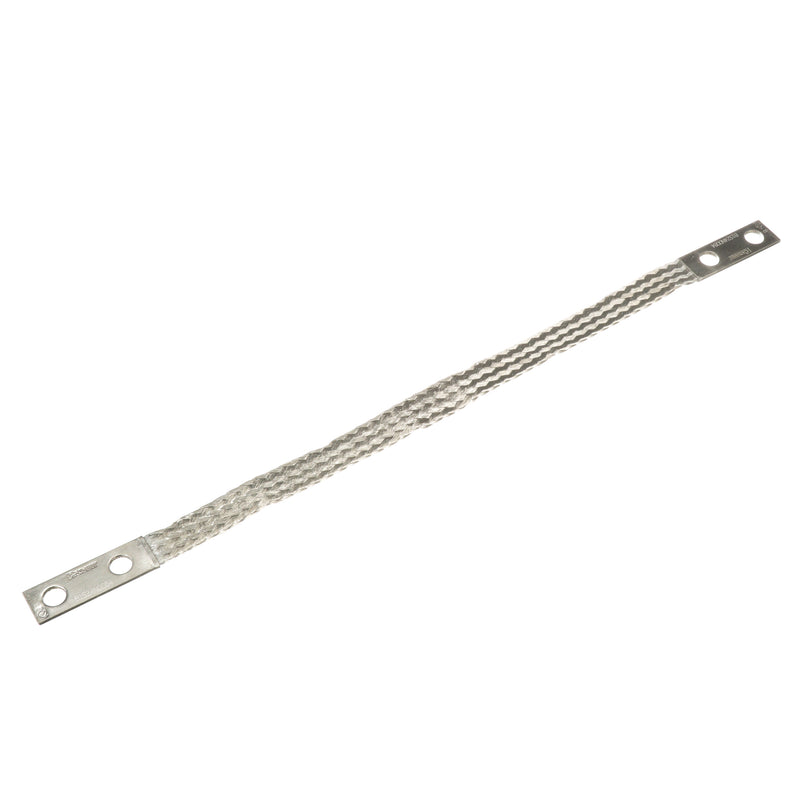

Panduit Braided Bonding Strap, Two-Hole, Non-Insul, 84 kcmil, 18.00” (457.2 mm), NEMA, 0.56” (14.2 mm) Hole Dia, 1.75” (44.5 mm) Hole Spacing [B1S18N0084]; PAJ887

Name: Panduit Braided Bonding Strap, Two-Hole, Non-Insul, 84 kcmil, 18.00” (457.2 mm), NEMA, 0.56” (14.2 mm) Hole Dia, 1.75” (44.5 mm) Hole Spacing [B1S18N0084]; PAJ887
Brand: Panduit
SKU: PAJ887
Availability: InStock

Mã kho: PAJ887

Mã nhà sản xuất: B1S18N0084

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Bonding Straps Jumpers / Flat Braided Bonding Straps: Panduit B1S18N0084

MÔ TẢ SẢN PHẨM

Braided Bonding Strap, Two-Hole, Non-Insul, 84 kcmil, 18.00” (457.2 mm), NEMA, 0.56” (14.2 mm) Hole Dia, 1.75” (44.5 mm) Hole Spacing

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Product Type	Two Hole Non-Insulated
Material	Tin-plated Copper
Color	Metallic
Overall Length (In.)	18
Overall Length (mm)	457.2
Overall Width (In.)	1.03
Overall Width (mm)	26.16
Overall Thickness (In.)	0.14
Overall Thickness (mm)	3.56
Ferrule Length (In.)	3
Ferrule Length (mm)	76.2
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Conductor Gauge (AWG)	NA
Conductor Gauge (kcmil)	84
Stud Hole Size (In.)	0.5
Stud Hole Size (mm)	12.7
Application	Control Panel
Standards Met	cULus Listed - UL 467 for Grounding and Bonding Applications Only
Part Features	Used to electrically bond enclosure doors, motors, and machine frames in the construction of control panels or machine structures
