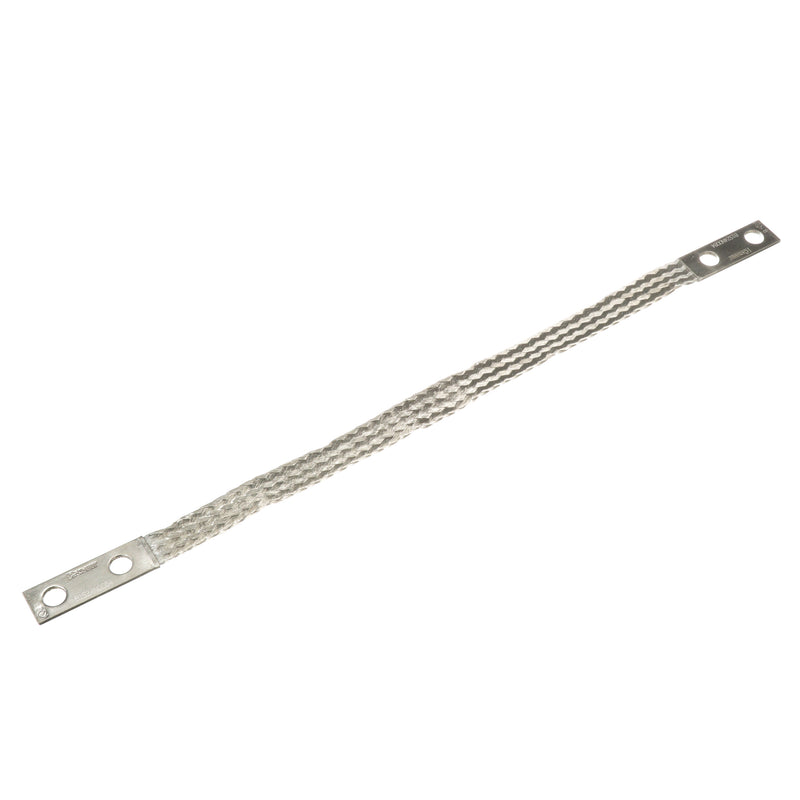

Panduit Braided Bonding Strap, Two-Hole, Non-Insul, 230 kcmil , 18.00” (457.2 mm), NEMA, 0.56” (14.2 mm) Hole Dia, 1.75” (44.5mm) Hole Spacing [B1S18N0230]; PAJ889

Name: Panduit Braided Bonding Strap, Two-Hole, Non-Insul, 230 kcmil , 18.00” (457.2 mm), NEMA, 0.56” (14.2 mm) Hole Dia, 1.75” (44.5mm) Hole Spacing [B1S18N0230]; PAJ889
Brand: Panduit
SKU: PAJ889
Availability: InStock

Mã kho: PAJ889

Mã nhà sản xuất: B1S18N0230

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Bonding Straps Jumpers / Flat Braided Bonding Straps: Panduit B1S18N0230

MÔ TẢ SẢN PHẨM

Braided Bonding Strap, Two-Hole, Non-Insul, 230 kcmil , 18.00” (457.2 mm), NEMA, 0.56” (14.2 mm) Hole Dia, 1.75” (44.5mm) Hole Spacing

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Product Type	Two Hole Non-Insulated
Material	Tin-plated Copper
Color	Metallic
Overall Length (In.)	18
Overall Length (mm)	457.2
Overall Width (In.)	1.19
Overall Width (mm)	30.23
Overall Thickness (In.)	0.25
Overall Thickness (mm)	6.35
Ferrule Length (In.)	3
Ferrule Length (mm)	76.2
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Conductor Gauge (AWG)	NA
Conductor Gauge (kcmil)	230
Stud Hole Size (In.)	0.5
Stud Hole Size (mm)	12.7
Application	Control Panel
Standards Met	cULus Listed - UL 467 for Grounding and Bonding Applications Only
Part Features	Used to electrically bond enclosure doors, motors, and machine frames in the construction of control panels or machine structures
