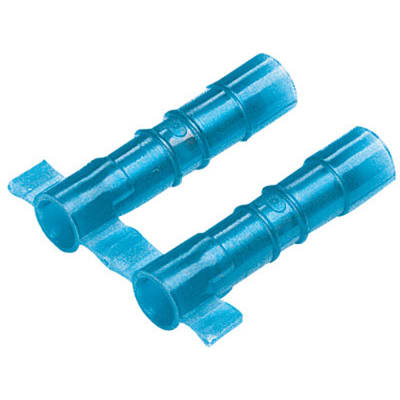

| Product Type |
Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) |
#14 |
| Maximum Copper Conductor Size (AWG STR) |
#14 |
| Maximum Copper Conductor Size (AWG) |
#14 |
| Minimum Copper Conductor Size (AWG SOL) |
#18 |
| Minimum Copper Conductor Size (AWG STR) |
#18 |
| Minimum Copper Conductor Size (AWG) |
#18 |
| Maximum Aluminum Conductor Size (AWG) |
NA |
| Minimum Aluminum Conductor Size (AWG) |
NA |
| Maximum Metric Conductor Size (mm²) |
2.5 |
| Minimum Metric Conductor Size (mm²) |
1.5 |
| Sub Brand |
Reel Smart |
| Copper Conductor Size (AWG) |
#18 - #14 |
| Class G Copper Flex Conductor Size (AWG) |
NA |
| Class H Copper Flex Conductor Size (AWG) |
NA |
| Class I Copper Flex Conductor Size (AWG) |
NA |
| Class K Copper Flex Conductor Size (AWG) |
NA |
| Class M Copper Flex Conductor Size (AWG) |
NA |
| Aluminum Conductor Size (AWG) |
NA |
| Barrel Type |
Brazed Seam |
| Maximum Voltage (V) |
600 |
| Maximum Voltage (kV) |
0.6 |
| Base Material |
Copper |
| Insulation Material |
Premium Nylon |
| Standards Met |
C22.2 No 65, UL 486C |
| Barrel Length (In.) |
0.96 |
| Barrel Length (mm) |
24.4 |
| Finish/Coating |
Tin-Plated |
| Color Code |
Blue |
| Overall Length (In.) |
0.96 |
| Overall Length (mm) |
24.4 |
| Overall Width (In.) |
0.24 |
| Overall Width (mm) |
6.1 |
| Wire Strip Length (In.) |
0.31 |
| Wire Strip Length (mm) |
7.9 |
| CSA Temperature Rating (°C) |
105 |
| CSA Temperature Rating (°F) |
221 |
| Part Features |
• Continuously molded design provides reliable, consistent performance
through the applicator for a high quality termination every time • Designed
to splice two solid or stranded wires together to repair or lengthen wires
• Butted configuration provides low profile for limited space applications
• Internal wire stop assures proper length of insertion into terminal
barrel • Premium grade nylon insulation available for applications
requiring a tighter grip around the wire insulation for maximum strain
relief |
|
