Panduit Fixed diameter cable clamp, heavy duty, #10 screw (M5), 1.19" (30.2mm) bundle, white, standard package. [CCH119-S10-C]; PAK247

Name: Panduit Fixed diameter cable clamp, heavy duty, #10 screw (M5), 1.19" (30.2mm) bundle, white, standard package. [CCH119-S10-C]; PAK247
Brand: Panduit
SKU: PAK247
Price: 6550.0 VND
Availability: InStock

Mã kho: PAK247

Mã nhà sản xuất: CCH119-S10-C

Tên nhà sản xuất: Panduit

6.550₫ - 6.550₫

6.550₫

6.550₫ - 6.550₫

6.550₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Clamps Clips: Panduit CCH119-S10-C

MÔ TẢ SẢN PHẨM

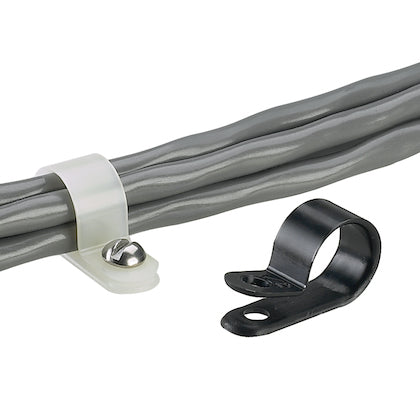

Fixed diameter cable clamp, heavy duty, #10 screw (M5), 1.19" (30.2mm) bundle, white, standard package.

_THÔNG SỐ KỸ THUẬT:

Note	Not available in Japan
Product Type	Cable Clamp
Color	Natural
Environment	Indoor
Material	Nylon 6.6
Maximum Bundle Diameter (In.)	1.19
Maximum Bundle Diameter (mm)	30.2
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	#10 (M5) Screw
Mounting Hole Diameter (In.)	0.2
Mounting Hole Diameter (mm)	5.1
Overall Height (In.)	1.19
Overall Height (mm)	30.2
Overall Length (In.)	1
Overall Length (mm)	25.4
Overall Width (In.)	0.5
Overall Width (mm)	12.7
Resistance Properties	Flame-Resistant
Standards Met	UL Recognized E136577, RoHS Compliant
Maximum Flange Thickness (In.)	0.05
Maximum Flange Thickness (mm)	1.3
