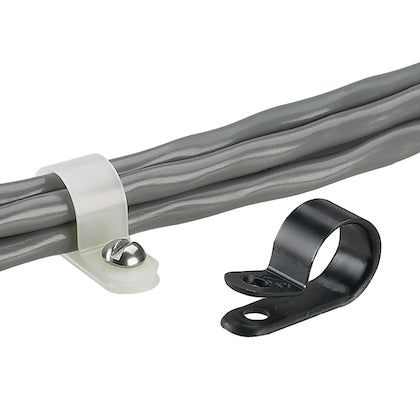

Panduit Fixed diameter cable clamp, #8 screw (M4), .50" (12.7mm) bundle, black, standard package. [CCS50-S8-C0]; PAK350

Name: Panduit Fixed diameter cable clamp, #8 screw (M4), .50" (12.7mm) bundle, black, standard package. [CCS50-S8-C0]; PAK350
Brand: Panduit
SKU: PAK350
Price: 5030.0 VND
Availability: InStock

Mã kho: PAK350

Mã nhà sản xuất: CCS50-S8-C0

Tên nhà sản xuất: Panduit

5.030₫ - 5.030₫

5.030₫

5.030₫ - 5.030₫

5.030₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Clamps Clips: Panduit CCS50-S8-C0

MÔ TẢ SẢN PHẨM

Fixed diameter cable clamp, #8 screw (M4), .50" (12.7mm) bundle, black, standard package.

_THÔNG SỐ KỸ THUẬT:

Note	Not available in Japan
Product Type	Cable Clamp
Color	Black
Environment	Outdoor
Material	Nylon 6.6
Maximum Bundle Diameter (In.)	0.5
Maximum Bundle Diameter (mm)	12.7
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	#8(M4) Screw
Mounting Hole Diameter (In.)	0.16
Mounting Hole Diameter (mm)	4.2
Overall Height (In.)	0.5
Overall Height (mm)	12.7
Overall Length (In.)	0.6
Overall Length (mm)	15.2
Overall Width (In.)	0.37
Overall Width (mm)	9.4
Resistance Properties	Flame-Resistant and Weather Resistant
Standards Met	UL Recognized E136577, RoHS Compliant
Maximum Flange Thickness (In.)	0.05
Maximum Flange Thickness (mm)	1.3
