Panduit CD-2001-1-SET

Panduit Crimp dies for CT-3001 tool, #1 AWG Copper, #4 AWG Aluminum. [CD-2001-1-SET]; PAK368

Mã kho: PAK368
Mã nhà sản xuất: CD-2001-1-SET
Tên nhà sản xuất: Panduit
5.571.290₫ - 5.571.290₫
5.571.290₫
5.571.290₫ - 5.571.290₫
5.571.290₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CD-2001-1-SET

MÔ TẢ SẢN PHẨM

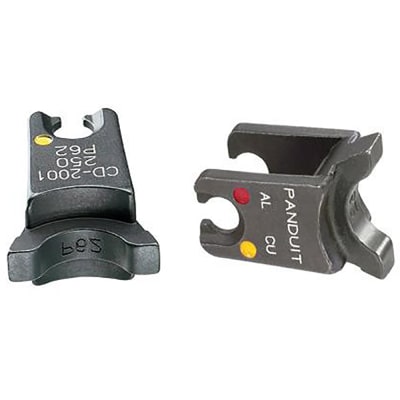

The CD-2001-1-SET Crimp Dies provide circumferential crimp results in terminations with premium electrical and mechanical performance. Color-coded to provide easy matching on connectors while an embossed die index number on the connector barrels provide post crimp inspection. The part number is perm

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) 1
Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²) 50
Metric Class 5f-6f Wire Size for Copper Lugs, Splices(mm²) 50
Flex Conductor Size (AWG) 1
Panduit Die Index Number P37
Color Code Green
For Use With CT-3001/ST and CT-3001/CCP Crimping Tool to Crimp #1 AWG Copper Code and Flex Conductor, 50mm² Class 2r and 5f/6f Metric Copper Conductor
Connection Type Crimp
Application Crimp dies for Copper Panduit Power Connectors and Splices.
Crimp Profile Circumferential
Base Material Steel
Finish/Coating Black Oxide
Product Type CD-2001 Crimp Dies
Part Features Color coded to connector,premium crimp,embosses die number
