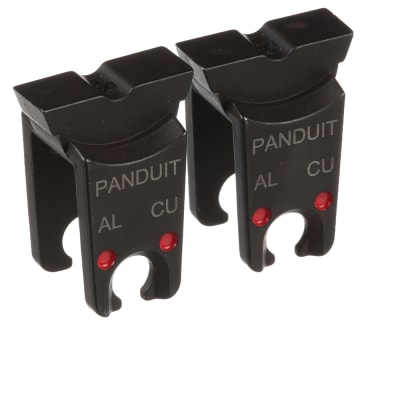

Panduit Crimp dies for CT-3001 tool, #8 AWG Copper. [CD-2001-8-SET]; PAK383

Name: Panduit Crimp dies for CT-3001 tool, #8 AWG Copper. [CD-2001-8-SET]; PAK383
Brand: Panduit
SKU: PAK383
Price: 5571290.0 VND
Availability: InStock

Mã kho: PAK383

Mã nhà sản xuất: CD-2001-8-SET

Tên nhà sản xuất: Panduit

5.571.290₫ - 5.571.290₫

5.571.290₫

5.571.290₫ - 5.571.290₫

5.571.290₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CD-2001-8-SET

MÔ TẢ SẢN PHẨM

The CD-2001-8-SET Crimp Dies provide circumferential crimp results in terminations with premium electrical and mechanical performance. Color-coded to provide easy matching on connectors while an embossed die index number on the connector barrels provide post crimp inspection. The part number is perm

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG)	8
Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²)	10
Metric Class 5f-6f Wire Size for Copper Lugs, Splices(mm²)	10
Flex Conductor Size (AWG)	8
Panduit Die Index Number	P21
Color Code	Red
For Use With	CT-3001/ST and CT-3001/CCP Crimping Tool To Crimp #8 AWG Copper Code and Flex Conductor,10mm° Class 2r and 10mm²/16mm² 5f/6f Metric Copper Conductor
Connection Type	Crimp
Application	Crimp dies for Copper Panduit Power Connectors and Splices.
Crimp Profile	Circumferential
Base Material	Steel
Finish/Coating	Black Oxide
Product Type	CD-2001 Crimp Dies
Part Features	Color coded to connector,premium crimp,embosses die number
