Panduit, CD Crimp Die Set [CD-920-1]; 847-8779

Name: Panduit, CD Crimp Die Set [CD-920-1]; 847-8779
Brand: Panduit
SKU: 8478779
Price: 6763950.0 VND
Availability: InStock

Mã kho: 8478779

Mã nhà sản xuất: CD-920-1

Tên nhà sản xuất: Panduit

6.763.950₫ - 6.763.950₫

6.763.950₫

6.763.950₫ - 6.763.950₫

6.763.950₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CD-920-1

MÔ TẢ SẢN PHẨM

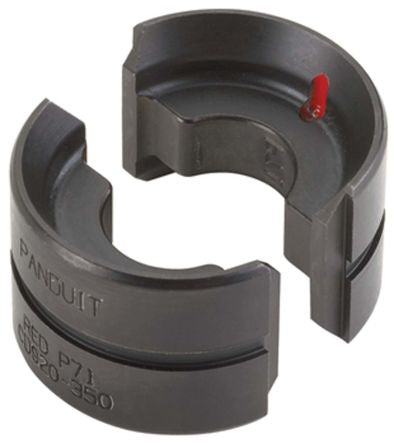

The CD-920-1 Crimp Die provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimpin

_THÔNG SỐ KỸ THUẬT:

Aluminum Conductor Size (AWG)	4
Copper Conductor Size (AWG)	1
Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²)	50
Panduit Die Index Number	P37
Color Code	Green
For Use With	Crimp die for use with Panduit CT-920, CT-2920, CT-930, CT-2930/L, CT-2930/LE, CT-2931 and CT-2931/E crimp tools and CT-930/CH and CT-930LPCH crimp heads, can also be used with Panduit CT-2940/L and CT-2940/LE crimp tools and CT-940CH crimp head with CD-940-DA die adapter sold separately.
Connection Type	Crimp
Sub Brand	Pan-Lug™
Application	Crimp dies for Panduit Power Connectors and Splices.
Crimp Profile	Circumferential
Base Material	Steel
Finish/Coating	Black Oxide
Product Type	CD-920 Crimp Dies
Part Features	Color coded to connector,premium crimp,embosses die number
