Panduit Wire Termination, [CD-920-400]; PAI491

Name: Panduit Wire Termination, [CD-920-400]; PAI491
Brand: Panduit
SKU: PAI491
Price: 6763950.0 VND
Availability: InStock

Mã kho: PAI491

Mã nhà sản xuất: CD-920-400

Tên nhà sản xuất: Panduit

6.763.950₫ - 6.763.950₫

6.763.950₫

6.763.950₫ - 6.763.950₫

6.763.950₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CD-920-400

MÔ TẢ SẢN PHẨM

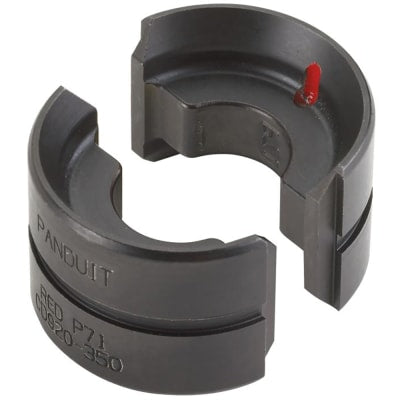

The CD-920-400 Crimp Die provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimp

_THÔNG SỐ KỸ THUẬT:

Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²)	185
Aluminum Conductor Size (kcmil)	300
Copper Conductor Size (kcmil)	400
Panduit Die Index Number	P76
Color Code	Blue
Flex Conductor Size (kcmil)	350
For Use With	Crimp die for use with Panduit CT-920, CT-2920, CT-930, CT-2930/L, CT-2930/LE, CT-2931 and CT-2931/E crimp tools and CT-930/CH crimp head, can also be used with Panduit CT-2940/L and CT-2940/LE crimp tools and CT-940CH crimp head with CD-940-DA die adapter sold separately.
Connection Type	Crimp
Sub Brand	Pan-Lug™
Application	Crimp dies for Panduit Power Connectors and Splices.
Crimp Profile	Circumferential
Base Material	Steel
Finish/Coating	Black Oxide
Product Type	CD-920 Crimp Dies
Part Features	Color coded to connector,premium crimp,embosses die number
