Panduit Corrugated loom tubing slit wall, .50" (12.7mm) x 4000' (1219.2m), heat stabilized black nylon 6. [CLT50N-4M630]; PAK509

Name: Panduit Corrugated loom tubing slit wall, .50" (12.7mm) x 4000' (1219.2m), heat stabilized black nylon 6. [CLT50N-4M630]; PAK509
Brand: Panduit
SKU: PAK509
Price: 34115460.0 VND
Availability: InStock

Mã kho: PAK509

Mã nhà sản xuất: CLT50N-4M630

Tên nhà sản xuất: Panduit

34.115.460₫ - 34.115.460₫

34.115.460₫

34.115.460₫ - 34.115.460₫

34.115.460₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Corrugated Loom Tubing Fittings: Panduit CLT50N-4M630

MÔ TẢ SẢN PHẨM

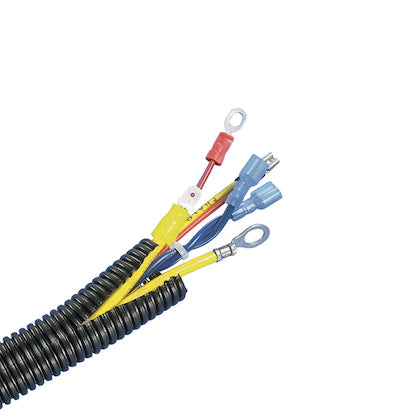

The CLT50N-4M630 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94

_THÔNG SỐ KỸ THUẬT:

Application	Covers wire and cable to protect from abrasion
Note	Slit Wall
Product Type	Corrugated Loom Tubing
Color	Black
Environment	Indoor
Flammability Rating	UL94-HB
Inside Diameter (In.)	0.51
Inside Diameter (mm)	13
Material	Nylon 6
Resistance Properties	Provides light crush and impact resistance
Maximum Operating Temperature (°C)	110
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°F)	230
Minimum Operating Temperature (°F)	-40
Nominal Diameter (In.)	0.5
Nominal Diameter (mm)	12.7
Outer Diameter (In.)	0.65
Outer Diameter (mm)	16.6
Overall Length (ft.)	4000
Overall Length (m)	1219.2
Standards Met	RoHS Compliant
Part Features	Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly
