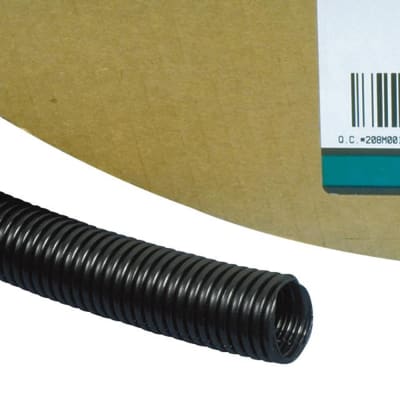

Panduit Corrugated loom tubing solid wall, 1" (25.4mm) x 100', heat stabilized nylon 6, black. [CLTS100N-C]; PAK524

Name: Panduit Corrugated loom tubing solid wall, 1" (25.4mm) x 100', heat stabilized nylon 6, black. [CLTS100N-C]; PAK524
Brand: Panduit
SKU: PAK524
Price: 5927350.0 VND
Availability: InStock

Mã kho: PAK524

Mã nhà sản xuất: CLTS100N-C

Tên nhà sản xuất: Panduit

5.927.350₫ - 5.927.350₫

5.927.350₫

5.927.350₫ - 5.927.350₫

5.927.350₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Corrugated Loom Tubing Fittings: Panduit CLTS100N-C

MÔ TẢ SẢN PHẨM

Corrugated loom tubing solid wall, 1" (25.4mm) x 100', heat stabilized nylon 6, black.

_THÔNG SỐ KỸ THUẬT:

Application	Provides Protection for Cables, Crush Impact and Abrasion Resistant, Hold in Place with Push Type Cable Ties Adhesive or Push Type Mounts.
Product Type	Corrugated Loom Tubing
Color	Black
Environment	Indoor
Flammability Rating	UL94-HB
Inside Diameter (In.)	0.91
Inside Diameter (mm)	23.2
Material	Nylon 6
Resistance Properties	Crush Impact and Abrasion Resistant
Maximum Operating Temperature (°C)	110
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°F)	230
Minimum Operating Temperature (°F)	-40
Nominal Diameter (mm)	25.4
Outer Diameter (In.)	1.09
Outer Diameter (mm)	27.7
Overall Length (ft.)	100
Overall Length (m)	30.5
Standards Met	RoHS Compliant
Part Features	Provides protection for cables, Crush impact and abrasion resistant, Hold in place with push type cable ties adhesive or push type mounts
