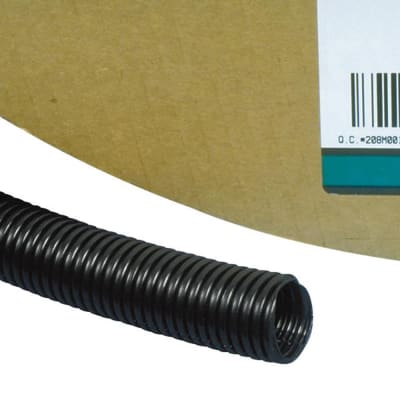

Panduit Corrugated loom tubing solid wall, .25" (6.4mm) x 100', heat stabilized nylon 6, black. [CLTS25N-C]; PAK534

Name: Panduit Corrugated loom tubing solid wall, .25" (6.4mm) x 100', heat stabilized nylon 6, black. [CLTS25N-C]; PAK534
Brand: Panduit
SKU: PAK534
Price: 1652120.0 VND
Availability: InStock

Mã kho: PAK534

Mã nhà sản xuất: CLTS25N-C

Tên nhà sản xuất: Panduit

1.652.120₫ - 1.652.120₫

1.652.120₫

1.652.120₫ - 1.652.120₫

1.652.120₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Corrugated Loom Tubing Fittings: Panduit CLTS25N-C

MÔ TẢ SẢN PHẨM

The CLTS25N-C Corrugated Loom Solid Wall Tubing protects cables from impact and abrasion. Hold in place with push-type cable ties, adhesive, or push-type mounts. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Heat-Stabilized Nylon 6. 0

_THÔNG SỐ KỸ THUẬT:

Application	Covers wire and cable to protect from abrasion
Note	Solid Wall
Product Type	Corrugated Loom Tubing
Color	Black
Environment	Indoor
Flammability Rating	UL94-HB
Inside Diameter (In.)	0.28
Inside Diameter (mm)	7.2
Material	Nylon 6
Resistance Properties	Provides light crush and impact resistance
Maximum Operating Temperature (°C)	110
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°F)	230
Minimum Operating Temperature (°F)	-40
Nominal Diameter (In.)	0.25
Nominal Diameter (mm)	6.35
Outer Diameter (In.)	0.4
Outer Diameter (mm)	10.1
Overall Length (ft.)	100
Overall Length (m)	30.5
Standards Met	RoHS Compliant
Part Features	Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly
