The closed cable tie connector ring in natural color is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is 0.33" long x 0.20" wide (8.4 x 5.1 mm) and is used with miniature, intermediate, and standard c

Mã kho: PAK556
Tên nhà sản xuất: Panduit
Original price 4.780₫ - Original price 4.780₫
Original price
4.780₫
4.780₫ - 4.780₫
Current price 4.780₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Accessories: Panduit CR2-M

MÔ TẢ SẢN PHẨM

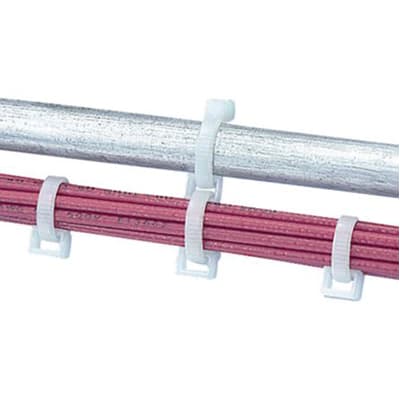

Panduit CR2-M Closed Cable Tie Connector Ring Mounts connect multiple wire bundles or hang bundles from conduit, eliminating the need for saddle clamps. These mounts can be used with miniature, intermediate and standard cable ties and are intended for indoor environments. They are 0.33” x 0.20” (8.4

_THÔNG SỐ KỸ THUẬT:

Application Connect Multiple Cable Bundles
Product Type Connector Ring
Color Natural
Environment Indoor
For Use With Cable Ties : M, I, S
Material Nylon 6.6
Maximum Installation Temperature (°C) 85
Minimum Installation Temperature (°C) -20
Maximum Installation Temperature (°F) 185
Minimum Installation Temperature (°F) -4
Maximum Operating Temperature (°C) 85
Minimum Operating Temperature (°C) -60
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°F) -76
Overall Height (In.) 0.2
Overall Height (mm) 5
Overall Length (In.) 0.33
Overall Length (mm) 8.4
Overall Width (In.) 0.24
Overall Width (mm) 6.1
Resistance Properties Heat and Wear Resistance
Standards Met UL Recognized #E136577
Mount Method Cable Tie
