Panduit Cable & Wire Ties, Mounts & Straps, [CR4H-M0]; PAF197

Mã kho: PAF197
Mã nhà sản xuất: CR4H-M0
Tên nhà sản xuất: Panduit
Original price 7.570₫ - Original price 7.570₫
Original price
7.570₫
7.570₫ - 7.570₫
Current price 7.570₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Accessories: Panduit CR4H-M0

MÔ TẢ SẢN PHẨM

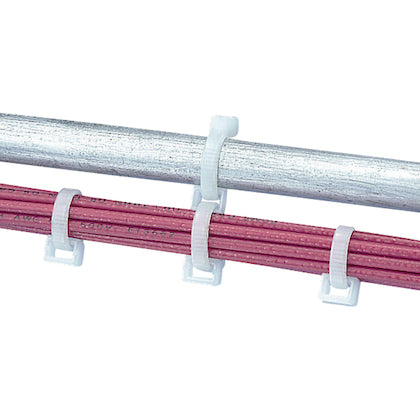

Panduit CR4H-M0 Closed Cable Tie Connector Ring Mounts connect multiple wire bundles or hang bundles from conduit, eliminating the need for saddle clamps. These mounts can be used with miniature, intermediate, standard, heavy-standard and light-heavy cable ties and are intended for outdoordoor envir

_THÔNG SỐ KỸ THUẬT:

Application Connect Multiple Cable Bundles
Product Type Connector Ring
Color Black
Environment Indoor/Outdoor
For Use With Cable Ties : M, I, S, HS, LH
Material Weather Resistant Nylon 6.6
Maximum Installation Temperature (°C) 85
Minimum Installation Temperature (°C) -20
Maximum Installation Temperature (°F) 185
Minimum Installation Temperature (°F) -4
Maximum Operating Temperature (°C) 85
Minimum Operating Temperature (°C) -60
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°F) -76
Overall Height (In.) 0.3
Overall Height (mm) 7.6
Overall Length (In.) 0.57
Overall Length (mm) 14.6
Overall Width (In.) 0.36
Overall Width (mm) 9.1
Resistance Properties Weather Resistant
Standards Met UL Recognized #E136577
Mount Method Cable Tie
