The Panduit® BlackFin® Battery Powered Micro-crimping Tool crimps 65 percent faster than a manual crimping tool thanks to an innovative trigger with power sensing technology. The lightweight, ergonomic design requires less hand force, reducing the risk of

Name: The Panduit® BlackFin® Battery Powered Micro-crimping Tool crimps 65 percent faster than a manual crimping tool thanks to an innovative trigger with power sensing technology. The lightweight, ergonomic design requires less hand force, reducing the risk of
Brand: Panduit
SKU: PAK580
Availability: InStock

Mã kho: PAK580

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CT-2300/UK

MÔ TẢ SẢN PHẨM

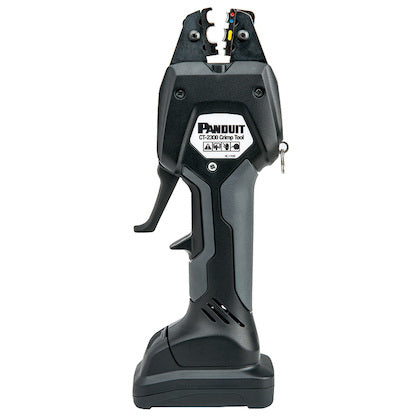

The Panduit® BlackFin® Battery Powered Micro-crimping Tool crimps 65 percent faster than a manual crimping tool thanks to an innovative trigger with power sensing technology. The lightweight, ergonomic design requires less hand force, reducing the risk of injury. The 4.7" (120mm) jaw with a force of

_THÔNG SỐ KỸ THUẬT:

Tool Type	Die Type
Universal Tool Capabilities	Wire Cutting
Maximum Wire Size (AWG)	10
Maximum Aluminum Conductor Size (AWG)	NA
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	NA
Maximum Copper Conductor Size (AWG)	NA
Minimum Wire Size (AWG)	22
Sub Brand	Crimping Tool
Maximum Cutting Diameter	NA
For Use With	Crimp Dies
Includes	Battery Operated Crimp Tool, Rechargeable Battery (Lithium-Ion 10.8VDC, 1.5Ah),Battery Charger – Regional (reference images below for regional charger plug type) 1 Plastic Tool Case with Die Storage.
Crimp Force (ton)	1.7
Crimp Cycle Time (s)	1.5
Battery Charge Time (min)	15
Battery Chemistry	Lithium-Ion
Insulated Tool Head	Yes
Overall Height (In.)	3.7
Overall Height (mm)	93
Overall Length (In.)	10
Overall Length (mm)	253
Overall Width (In.)	2.5
Overall Width (mm)	63.5
Standards Met	Certified to IEC/EN 62841-1 and tested to EN61000
Product Type	Crimping Tool
Tool Configuration	In-Line Design
Weight (Kg)	1
Weight (lb)	2.11
Crimp Profile	U-shape
Base Material	Steel
Battery Voltage (V)	230
Part Features	Includes tool, one 10.8 Volt Li-On Batteries, 230 vac. battery charger with Type G Plug and molded carrying case.

The Panduit® BlackFin® Battery Powered Micro-crimping Tool crimps 65 percent faster than a manual crimping tool thanks to an innovative trigger with power sensing technology. The lightweight, ergonomic design requires less hand force, reducing the risk of

MÔ TẢ SẢN PHẨM

_THÔNG SỐ KỸ THUẬT:
