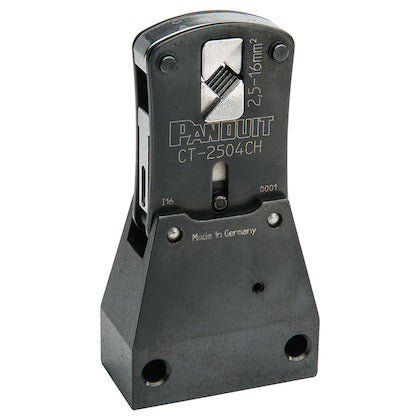

Panduit CT-2504CH

Panduit Crimp Head for use with Panduit CT-2500 , CT-2500/E, CT-2500/L and CT-2500/LE crimp tools. Crimps Panduit #8-6 AWG single wire ferrules and Panduit #10 AWG twin wire ferrules. Square crimp profile. [CT-2504CH]; PAK586

Mã kho: PAK586
Mã nhà sản xuất: CT-2504CH
Tên nhà sản xuất: Panduit
17.526.900₫ - 17.526.900₫
17.526.900₫
17.526.900₫ - 17.526.900₫
17.526.900₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CT-2504CH

MÔ TẢ SẢN PHẨM

Crimp Head for use with Panduit CT-2500 , CT-2500/E, CT-2500/L and CT-2500/LE crimp tools. Crimps Panduit #8-6 AWG single wire ferrules and Panduit #10 AWG twin wire ferrules. Square crimp profile.

_THÔNG SỐ KỸ THUẬT:

Tool Type Die Type
Universal Tool Capabilities Wire Cutting
Maximum Wire Size (AWG) 6
Minimum Aluminum Conductor Size (AWG) NA
Minimum Copper Conductor Size (AWG SOL) NA
Minimum Copper Conductor Size (AWG STR) NA
Minimum Copper Conductor Size (AWG) NA
Minimum Flex conductor size (AWG) NA
Minimum Wire Size (AWG) #8
Minimum Cutting Diameter NA
For Use With Used with Panduit CT-2500 , CT-2500/E, CT-2500/L and CT-2500/LE crimp tools
Battery Chemistry NA
Insulated Tool Head NA
Overall Height (In.) 2
Overall Height (mm) 50
Overall Width (In.) 1
Overall Width (mm) 25
Product Type Square profile crimp head frame for CT-2500 series tools
Tool Configuration NA
Weight (Kg) 0.4
Weight (lb) 0.92
Base Material Steel
Part Features Self-adjusting crimp die for Insulated and noninsulated ferrules.
