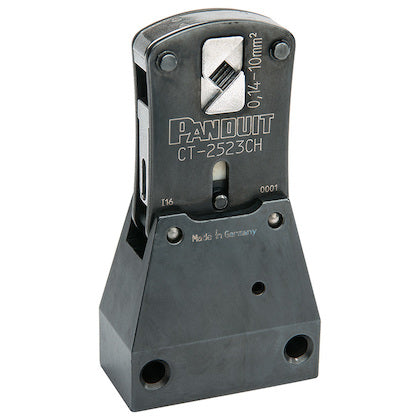

Panduit CT-2523CH

Crimps Panduit #26 - 8 AWG (0.14 - 10.0mm2) insulated and non-insulated ferrules and #22 - 12 AWG (0.50 - 4.0mm2) insulated twin wire ferrules - Square profile. Used with the Panduit CT-2500/L Series Battery Hydraulic crimping tool

Mã kho: PAK587
Tên nhà sản xuất: Panduit
18.361.430₫ - 18.361.430₫
18.361.430₫
18.361.430₫ - 18.361.430₫
18.361.430₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CT-2523CH

MÔ TẢ SẢN PHẨM

Crimps Panduit #26 - 8 AWG (0.14 - 10.0mm2) insulated and non-insulated ferrules and #22 - 12 AWG (0.50 - 4.0mm2) insulated twin wire ferrules - Square profile. Used with the Panduit CT-2500/L Series Battery Hydraulic crimping tool

_THÔNG SỐ KỸ THUẬT:

Tool Type Die Type
Universal Tool Capabilities Wire Cutting
Maximum Wire Size (AWG) 6
Minimum Aluminum Conductor Size (AWG) NA
Minimum Copper Conductor Size (AWG SOL) NA
Minimum Copper Conductor Size (AWG STR) NA
Minimum Copper Conductor Size (AWG) NA
Minimum Flex conductor size (AWG) NA
Minimum Wire Size (AWG) #8
Minimum Cutting Diameter NA
For Use With Used with Panduit CT-2500 , CT-2500/E, CT-2500/L and CT-2500/LE crimp tools
Battery Chemistry NA
Insulated Tool Head NA
Overall Height (In.) 2
Overall Height (mm) 50
Overall Width (In.) 1
Overall Width (mm) 25
Product Type Square profile crimp head frame for CT-2500 series tools
Tool Configuration NA
Weight (Kg) 0.4
Weight (lb) 0.92
Base Material Steel
Part Features Self-adjusting crimp die for Insulated and noninsulated ferrules.
