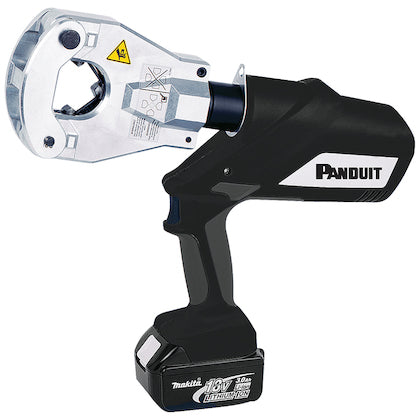

Panduit CT-2980/STINT

The Panduit® BlackFin® 4-point Indenter Dieless Crimping Tool crimps with just the touch of a button. Wires can quickly and easily be terminated with a 360-degree rotating flip-top crimp head. The crimp tool has a force of 6.2 tons and crimps #4 AWG – 750

Mã kho: PAK608
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CT-2980/STINT

MÔ TẢ SẢN PHẨM

The Panduit® BlackFin® 4-point Indenter Dieless Crimping Tool crimps with just the touch of a button. Wires can quickly and easily be terminated with a 360-degree rotating flip-top crimp head. The crimp tool has a force of 6.2 tons and crimps #4 AWG – 750 kcmil copper code lugs and splices with wire

_THÔNG SỐ KỸ THUẬT:

Tool Type Electro-hydraulic
Includes 6.2-Ton battery powered crimping tool, two 3.0 Ah Makita Li-Ion batteries, 230V EU charger, and Carrying case
Crimp Cycle Time (s) 6
Battery Charge Time (min) 22
Overall Height (In.) 13.5
Overall Height (mm) 344
Overall Length (In.) 15.7
Overall Length (mm) 400
Overall Width (In.) 3
Overall Width (mm) 75
Standards Met IEC/EN 62841-1
Product Type Uni-Die Dieless, Lithium-Ion Battery Powered Hydraulic, 6.2-Ton, Pistol Grip Crimping Tool
Part Features • Meets OSHA mandated electrical and mechanical product safety requirements• Meets requirements of safety for handheld, motor operated electric tools (UL 60745-1 and CSA No. 60745-1)• Meets requirements of EU machinery directive and EMC directive - Certified by SiQ to IEC/EN 62841-1 and tested to EN 61000 series• Meets ISO 12100, Machinery Safety Risk Assessment, including ergonomics• Quad-point indent crimping feature with patented centering system, no dies required• Electronic control and monitoring of crimping operation• Integrated pressure measurement with visual and audible signals in case of error• Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit website• Provides UL Listed and CSA Certified wire range-taking capability on Panduit® Pan-Lug™ Copper Lugs and Splices, minimizes connector inventory and saves cost• Ergonomic handle positioned at center of gravity for easy handling• Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation• One-button operating concept for controlling all tool functions• LED worklight for workplace illumination• 2-stage hydraulic system with rapid advance and power stroke, 3-6 second crimp cycle• Energy saving function with motor cut-out (autostop)• Rotating, flip-top crimp head, rotates 350 degrees• Quick motor stop for high user safety• Automatic retraction when crimping is complete• Manual retract sets piston stop• Automatic position control (ARS) sets piston stop for multiple crimping operations• Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software• Environmentally-friendly hydraulic oil, biodegradable• Includes two Makita 18 vdc Li-ion, 3 Amp-hr batteries with fast, 22 minute charge time and battery charger• 300 crimps on a 300 kcmil (150mm²) copper code lug per battery charge• Can be operated as a corded tool
