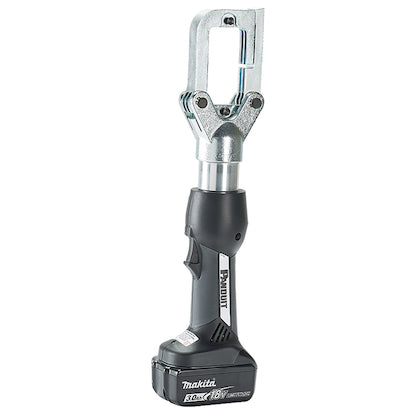

Panduit CT-3001/CCPINT

Introducing the Panduit® BlackFin® 3-in-1 in-line Lithium-ion Hydraulic Crimp, Cut and Punch Tool. Adapters and dies change out quickly and easily thanks to a 355-degree rotating flip-top crimp head. The crimp tool has a force of 6.7 tons and crimps Pandu

Mã kho: PAK611
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CT-3001/CCPINT

MÔ TẢ SẢN PHẨM

Introducing the Panduit® BlackFin® 3-in-1 in-line Lithium-ion Hydraulic Crimp, Cut and Punch Tool. Adapters and dies change out quickly and easily thanks to a 355-degree rotating flip-top crimp head. The crimp tool has a force of 6.7 tons and crimps Panduit copper lugs and splices for #8 AWG - 600 k

_THÔNG SỐ KỸ THUẬT:

Tool Type Electro-hydraulic
For Use With Panduit Crimp Dies
Includes 6.7-Ton battery powered universal tool, two 3.0 Ah Makita Li-Ion batteries, 230V EU charger, "W" die adapter UAW, and Carrying case
Crimp Cycle Time (s) 9
Battery Charge Time (min) 22
Overall Height (In.) 4.6
Overall Height (mm) 116
Overall Length (In.) 17.5
Overall Length (mm) 444
Overall Width (In.) 3
Overall Width (mm) 75
Standards Met IEC/EN 62841-1
Product Type Universal: Cut-Crimp-Punch, Litium-Ion Battery Powered Hydraulic, 6.7-Ton, In-line Crimping Tool
Part Features • Meets OSHA mandated electrical and mechanical product safety requirements• Meets requirements of safety for handheld, motor operated electric tools (UL 60745-1 and CSA No. 60745-1)• Meets requirements of EU machinery directive and EMC directive - Certified by SiQ to IEC/EN 62841-1 and tested to EN 61000 series• Meets ISO 12100, Machinery Safety Risk Assessment, including ergonomics• Electronic control and monitoring of tool and crimping operation• Universal tool design operates using crimp dies, wire and threaded-rod cutting blades and hole punch adapter, sold separately• Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit website• In-Line, balanced ergonomic tool design mitigates repetitive stress injuries to operators• Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation• One-button operating concept for controlling all tool functions• LED worklight for workplace illumination• 2-stage hydraulic system with rapid advance and power stroke, 7-9 second crimp cycle• Energy saving function with motor cut-out (autostop)• Rotating crimp head, rotates 350 degrees• Quick motor stop for high user safety• Automatic retraction when crimping is complete• Manual retract manually sets piston stop• Manual retract stop with "teach in" sets position of piston for multiple crimping operation (MRS+)• Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software• Includes two Makita 18 vdc Li-ion, 3 Amp-hr batteries with fast, 22 minute charge time and battery charger• 300 crimps on a 300 kcmil (150mm²) copper code lug per battery charge• Can be operated as a corded tool using Panduit A/C adapters, sold separately
