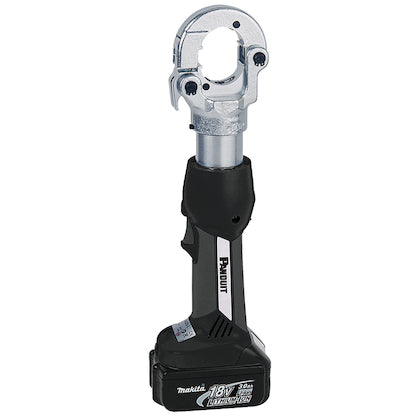

Panduit CT-3001/ST

Introducing the Panduit® BlackFin® 3-in-1 in-line Lithium-ion Hydraulic Crimp Tool. Adapters and dies change out quickly and easily thanks to a 355-degree rotating flip-top crimp head. The crimp tool has a force of 6.7 tons and crimps Panduit copper lugs

Mã kho: PAK614
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CT-3001/ST

MÔ TẢ SẢN PHẨM

The CT-3001/ST BlackFin® Battery Powered Crimp Tool crimps easily with a 360-degree rotating flip-top crimp head since adapters can change out quickly. The crimp tool has a force of 6.7 tons and crimps most Pan-Term® terminals, splices, disconnects, ferrules, and some copper lugs. This tool meets OS

_THÔNG SỐ KỸ THUẬT:

Tool Type Die Type
Crimps Per Charge 300
For Use With Panduit Crimp Dies
Includes Die Adapter CD-3001/ST-DA, Two Makita Batteries, Battery Charger, Storage Case
Crimp Force (ton) 6.7
Crimp Head Rotation (°) 350
Crimp Cycle Time (s) 5
Battery Charge Time (min) 22
Battery Chemistry Lithium-Ion
Insulated Tool Head No
Jaw Opening Width (In.) 1.8
Jaw Opening Width (mm) 45.7
Overall Height (In.) 4.6
Overall Height (mm) 116
Overall Length (In.) 16.8
Overall Length (mm) 427
Overall Width (In.) 3
Overall Width (mm) 75
Standards Met Certified to IEC/EN 62841-1
Product Type Die-Type, Litium-Ion Battery Powered Hydraulic, 6.7-Ton, In-line Crimping Tool
Tool Configuration In-Line Design
Weight (Kg) 3.1
Weight (lb) 6.6
Crimp Profile Circumferential
Base Material Steel
Battery Voltage (V) 18
Part Features • Meets OSHA mandated electrical and mechanical product safety requirements• Meets requirements of safety for handheld, motor operated electric tools (UL 60745-1 and CSA No. 60745-1)• Meets requirements of EU machinery directive and EMC directive - Certified by SiQ to IEC/EN 62841-1 and tested to EN 61000 series• Meets ISO 12100, Machinery Safety Risk Assessment, including ergonomics• Electronic control and monitoring of crimping operation• Integrated pressure measurement with visual and audible signals in case of error• Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit website• In-Line, balanced ergonomic tool design mitigates repetitive stress injuries to operators• Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation• One-button operating concept for controlling all tool functions• LED worklight for workplace illumination• 2-stage hydraulic system with rapid advance and power stroke, 2-5 second crimp cycle• Energy saving function with motor cut-out (autostop)• Rotating, flip-top crimp head, rotates 350 degrees• Quick motor stop for high user safety• Automatic retraction when crimping is complete• Manual retract manually sets piston stop• Automatic position control (ARS) sets position of piston for multiple crimpings• Environmentally-friendly hydraulic oil, quickly biodegradable• Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software• Includes two Makita 18 vdc Li-ion, 3 Amp-hr batteries with fast, 22 minute charge time and battery charger• 300 crimps on a 300 kcmil (150mm²) copper code lug per battery charge• Can be operated as a corded tool using Panduit A/C adapters, sold separately
