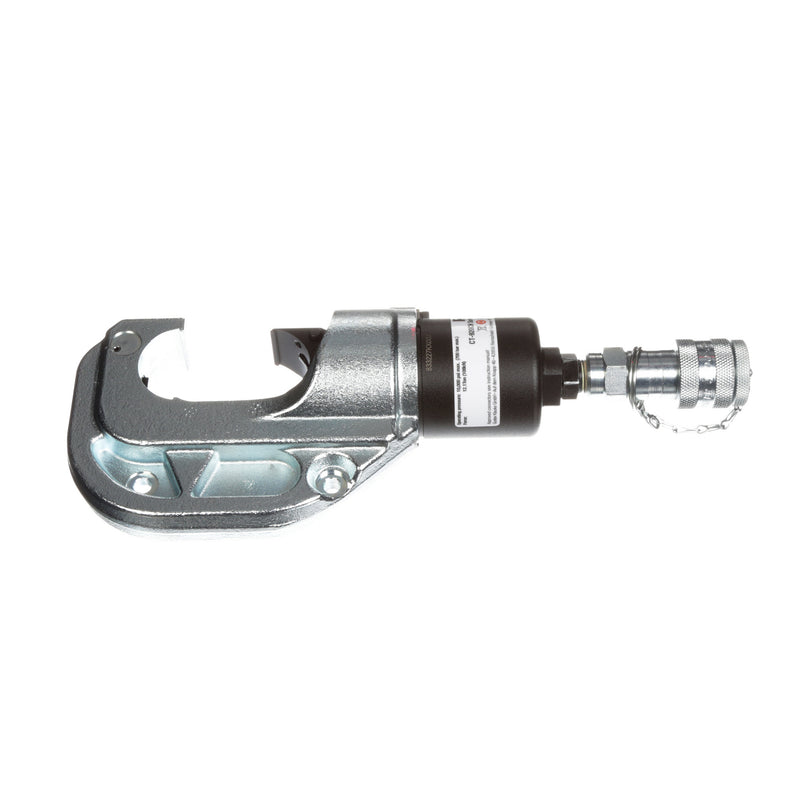

Panduit CT-920CH

When partnered as a complete Panduit set, the Panduit® BlackFin® Crimping Tool provides continuous crimping operation. Plus, the open C-crimp head design allows easy loading of crimping dies and connectors, saving time. The crimp tool has a force of 12 to

Mã kho: PAK635
Tên nhà sản xuất: Panduit
71.507.020₫ - 71.507.020₫
71.507.020₫
71.507.020₫ - 71.507.020₫
71.507.020₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CT-920CH

MÔ TẢ SẢN PHẨM

When partnered as a complete Panduit set, the Panduit® BlackFin® Crimping Tool provides continuous crimping operation. Plus, the open C-crimp head design allows easy loading of crimping dies and connectors, saving time. The crimp tool has a force of 12 tons and crimps #8 AWG – 750 kcmil copper code,

_THÔNG SỐ KỸ THUẬT:

For Use With Panduit Crimp Dies
Tool Type Electro-hydraulic
Application Panduit Copper and Aluminum compression connectors using Panduit Crimping Dies.
Overall Height (In.) 5.1
Overall Height (mm) 129
Product Type NA
Part Features • Incorporates Parker type quick-connect fittings to ease installation and save time• Requires 10,000 psi hydraulic pump system (recommended Panduit CT-902HP pump and accessories)• Durable crimp head design for long life• Open "C" head design allows for easy loading of crimping dies and connectors, saves time• Uses Panduit CD-920 and CD-930 crimp dies to provide easy matching of crimping die to connector• Dies installed using spring loaded die retention pins, no need for tools• Cast-in handle allows crimp head to be mounted in a bench vice
