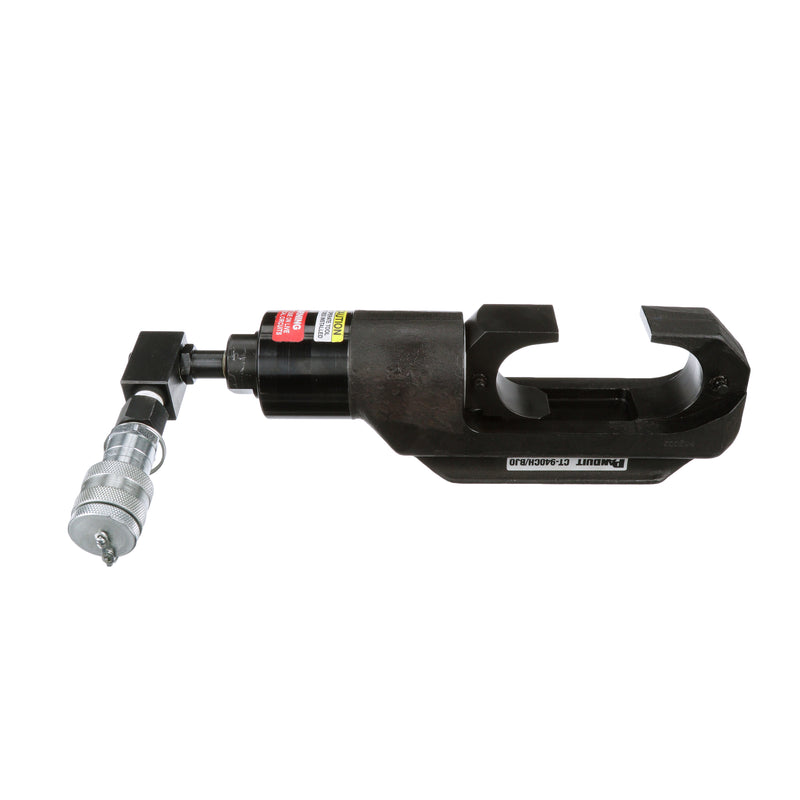

Panduit 15 Ton Crimp Head with 90 Degree Fitting [CT-940CH/BJO]; PAK638

Mã kho: PAK638
Mã nhà sản xuất: CT-940CH/BJO
Tên nhà sản xuất: Panduit
Original price 129.548.580₫ - Original price 129.548.580₫
Original price
129.548.580₫
129.548.580₫ - 129.548.580₫
Current price 129.548.580₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CT-940CH/BJO

MÔ TẢ SẢN PHẨM

15 Ton Crimp Head with 90 Degree Fitting

_THÔNG SỐ KỸ THUẬT:

Note Do not operate tool without dies in place. Do not use on live circuits.
Compatible Connector NA
For Use With 10,000 psi Hydraulic Pump
Tool Type Die Type
Universal Tool Capabilities NA
Crimp Force (ton) 15
Maximum Copper Conductor Size (AWG SOL) NA
Maximum Copper Conductor Size (AWG STR) NA
Maximum Copper Conductor Size (AWG) NA
Maximum Copper Conductor Size (kcmil) 1500
Minimum Copper Conductor Size (AWG SOL) NA
Minimum Copper Conductor Size (AWG STR) NA
Minimum Copper Conductor Size (AWG) 8
Maximum Aluminum Conductor Size (AWG) NA
Maximum Aluminum Conductor Size (kcmil) 750
Minimum Aluminum Conductor Size (AWG) 6
Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²) 630
Metric Class 5f-6f Wire Size for Copper Lugs, Splices(mm²) 300
Sub Brand NA
Copper Conductor Size (AWG) NA
Flex Conductor Size (AWG) NA
Weight (Kg) 6.8
Weight (lb) 15
Includes Operating Instructions and Carrying Case
Application NA
Overall Height (In.) 4.1
Overall Height (mm) 104
Overall Length (In.) 14.5
Overall Length (mm) 388
Overall Width (In.) 2.5
Overall Width (mm) 64
Product Type Hydraulic Crimp Head
Tool Configuration NA
Part Features Includes Banjo Quick Connector Fitting that can Swivel 360 Degrees
