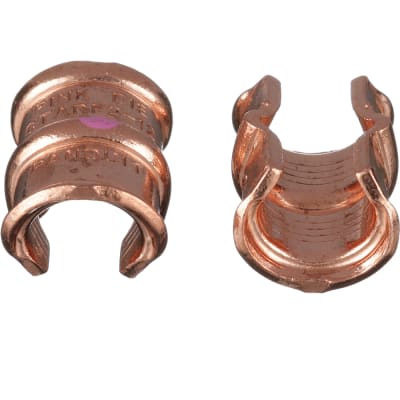

Panduit CTAPF2-12-C

Panduit C-Type copper thin wall compression tap, type CTAPF, #2 AWG - #12 AWG. [CTAPF2-12-C]; PAK656

Mã kho: PAK656
Mã nhà sản xuất: CTAPF2-12-C
Tên nhà sản xuất: Panduit
188.250₫ - 188.250₫
188.250₫
188.250₫ - 188.250₫
188.250₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Compression Connectors Covers / Ctap Connectors: Panduit CTAPF2-12-C

MÔ TẢ SẢN PHẨM

The CTAPF2-12-C Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inve

_THÔNG SỐ KỸ THUẬT:

Sub Brand StructuredGround™
Maximum Tap Size (AWG STR) 4
Minimum Tap Size (AWG STR) 12
Maximum Run Size (AWG STR) 2
Minimum Run Size (AWG STR) 4
Overall Length (In.) 1.25
Overall Length (mm) 31.8
Overall Thickness (In.) 0.08
Overall Thickness (mm) 2
Overall Width (In.) 1.25
Overall Width (mm) 31.8
Panduit Die Index Number P42M
Wire Strip Length (In.) 1-5/16
Wire Strip Length (mm) 33.3
Inside Diameter (In.) 0.51
Inside Diameter (mm) 13
For Use With AWG wire only
Standards Met UL/CSA
Application Utility/Ground Grid
Product Type Compression Connectors - Taps
Material Cooper
