Panduit Pneumatic benchtop ferrule crimp press for #12 – #8 AWG (4 – 10 mm2) loose piece ferrules [CTFP-100]; PAK675

Panduit Pneumatic benchtop ferrule crimp press for #12 – #8 AWG (4 – 10 mm2) loose piece ferrules [CTFP-100]; PAK675

Mã kho: PAK675
Mã nhà sản xuất: CTFP-100
Tên nhà sản xuất: Panduit
22.906.300₫ - 22.906.300₫
22.906.300₫
22.906.300₫ - 22.906.300₫
22.906.300₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Crimpers Cutters Strippers Accessories / Crimping Tools, Pumps & Accessories: Panduit CTFP-100

MÔ TẢ SẢN PHẨM

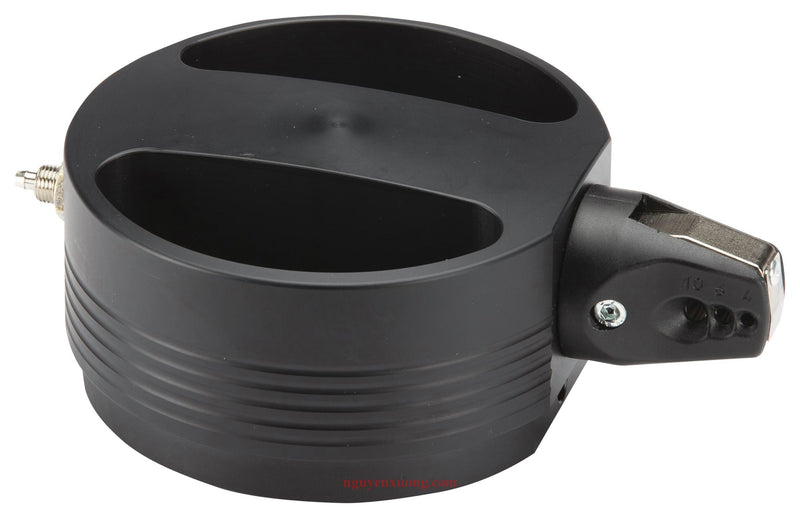

The CTFP-100 is a pneumatic, benchtop ferrule crimp press for #12 – #8 AWG (4 – 10 mm2) loose piece ferrules. Its small footprint, foot pedal actuator, and coiled air line allow for set up versatility and convenience. The fast crimp stroke and integrated open ferrule container also make it an effici

_THÔNG SỐ KỸ THUẬT:

Compatible Connector F, FSD, FSDX, FSDXL, and FTD series Loose Piece Ferrules
For Use With 5 bar / 72 psi compressed air supply
Tool Type Dieless
Maximum Copper Conductor Size (AWG) #8
Minimum Copper Conductor Size (AWG) #12
Maximum Metric Conductor Size (mm²) 10
Minimum Metric Conductor Size (mm²) 4
Copper Conductor Size (AWG) #12 - #8
Weight (Kg) 2.8
Weight (lb) 6.2
Includes Coiled air line & foot actuated pedal
Overall Height (In.) 2.9
Overall Height (mm) 75
Overall Length (In.) 7.8
Overall Length (mm) 200
Overall Width (In.) 5.3
Overall Width (mm) 135
Product Type Hydraulic Crimp Head
Part Features Includes foot pedal and coiled air line for variable benchtop set-up. Pneumatic head incorporates two open storage spaces for loose piece ferrules.
