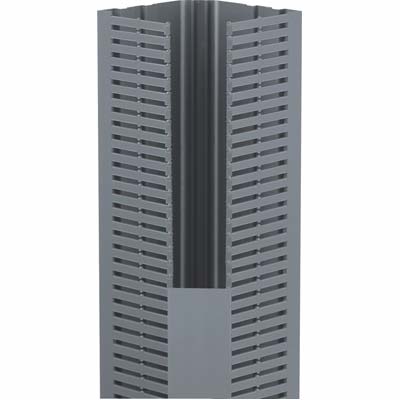

Panduit CWD3LG6

Panduit PanelMax„¢ corner wiring duct, 4.40W x 3.57 H, .2 (5.0mm) slot width, light gray. [CWD3LG6]; PAK692

Mã kho: PAK692
Mã nhà sản xuất: CWD3LG6
Tên nhà sản xuất: Panduit
850.830₫ - 850.830₫
850.830₫
850.830₫ - 850.830₫
850.830₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit CWD3LG6

MÔ TẢ SẢN PHẨM

The CWD3LG6 Panduct® PanelMax™ Corner Wiring Duct is an innovative wire management product that makes more efficient use of space inside enclosures, speeds installation, and reduces control panel assembly costs. It used in the vertical corners of compact to large electrical control panels with both

_THÔNG SỐ KỸ THUẬT:

Application Corner Wiring Duct is Used in the Vertical Corners of Compact to Large Electrical Control Panels (With Both Side and Back Panels) to Route, Conceal, and Protect Electrical Wiring
Product Type Base Wiring Duct
Color Light Gray
Cover Part Number C2LG6
Flammability Rating UL94V-0
Includes Base Only
Standards Met RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
Material Lead-Free PVC
Mount Method Mounting Holes
Measurement System Imperial
Wiring Duct Style Corner Wiring Duct
Wiring Duct Type NA
Overall Height (In.) 3.57
Overall Height (mm) 90.7
Overall Length (ft.) 6
Overall Length (m) 1.8
Overall Width (In.) 4.4
Overall Width (mm) 111.8
Slot Width (In.) 0.2
Slot Width (mm) 5
Sub Brand PanelMax™
Part Features One-piece wire management product with co-extruded flexible hinges which makes more efficient use of space inside enclosures. It speeds installation and reduces costs. Has integrated mounting feature for divider wall, double scoreline, extended cover neck, compatible with standard wiring duct and cover. Gives up to 20% space savings in enclosure footprint area.
