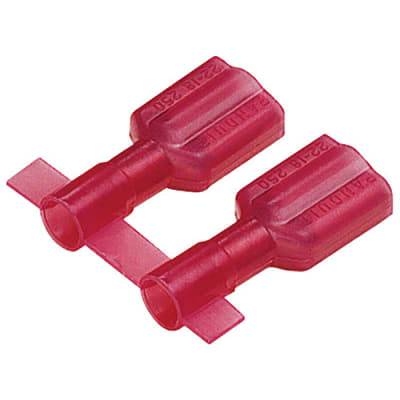

Panduit DNF18-110FIB-3K

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.71" (18.0 mm) lo

Mã kho: PAK849
Tên nhà sản xuất: Panduit
8.790₫ - 8.790₫
8.790₫
8.790₫ - 8.790₫
8.790₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Disconnects: Panduit DNF18-110FIB-3K

MÔ TẢ SẢN PHẨM

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.71" (18.0 mm) long and 0.19" (4.8 mm) wide. The disconnect ha

_THÔNG SỐ KỸ THUẬT:

Disconnect Type Female Disconnect
Insulation Material Nylon - Barrel Insulated
Maximum Copper Conductor Size (AWG) #22
Maximum Wire Size (AWG) #18
Minimum Wire Size (AWG) #18
Minimum Copper Conductor Size (AWG) #22
Wire Strip Length (In.) 0.28
Wire Strip Length (mm) 7.1
Tab Size (In.) 0.11
Tab Size (mm) 2.8
Standards Met UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V) 600
Base Material Brass
Finish/Coating Tinned
Color Code Red
Flammability Rating HB
Insulation Diameter (In.) 0.12
Insulation Diameter (mm) 12
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Sub Brand Reel Smart
Maximum Wire Insulation Diameter (In.) 0.12
Maximum Wire Insulation Diameter (mm) 3
Overall Height (In.) 0.15
Overall Height (mm) 3.8
Overall Length (In.) 0.71
Overall Length (mm) 18
Overall Width (In.) 0.19
Overall Width (mm) 4.8
Seam Type Butted
Packaging Type Reel
Product Type Disconnects on a Reel
For Use With CD9-7A, CD-800-7
Maximum Voltage (kV) 0.6
Part Features • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability, maximum insulation temperature 221°F (105°C) • per UL 310
